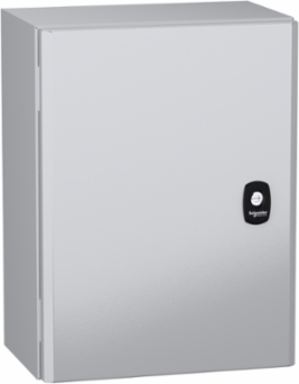

Schneider Electric NSYS3DC4320 Spacial S3DC Wall Mounted Steel Enclosure 400x300x200mm IP66 IK10
- MPN: NSYS3DC4320
- PPN: SCH-NSYS3DC4320
CAD
$240.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Offering robust protection for electrical installations, the Spacial wall-mounted steel enclosure from Schneider Electric is designed to meet the demanding requirements of various environments. With an IP66 rating, it ensures excellent resistance to dust and water ingress, while its IK10 rating guarantees robustness against mechanical impacts. The enclosure's dimensions of 400x300x200mm make it a versatile option for both indoor and outdoor applications, providing safe and secure housing for electrical components. Built with durability in mind, this enclosure is an essential choice for professionals looking to safeguard their systems in challenging conditions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 300 mm
Enclosure Nominal Height400 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 door, 1 lock
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 15 kg CO2 eq., 14.606295740927184
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 30 kg CO2 eq., 30.27210176144342
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Door Opening Side
- reversible 120 °)
- Energy Efficiency Optimized
- False
- Material
- steel
- Number Of Doors
- front face 1
- Product Name
- PanelSeT S3DC
- Range
- PanelSeT
- Returnability
- Yes
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 58 kg CO2 eq.
- Pep Code
- ENVPEP1001004EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Certificate Agency
- UL
- Package Weight(Lbs)
- 6.200 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]12.309000638403118, 12 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.2215056780319409, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Door TypeSolid
Lock Typescrew driver insert lock
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecompact enclosure
Removable Partsdoor by hinges
Software Versionv6.1
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %98
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9403200090
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 58.408903818805655
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 4X/13
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000747
ETIM 9EC000747
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
