Acuity Brands

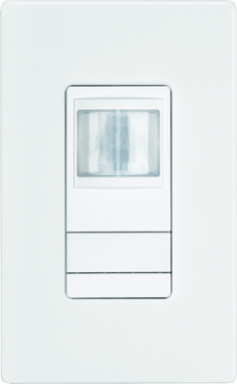

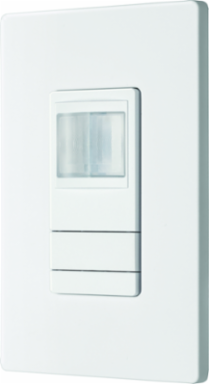

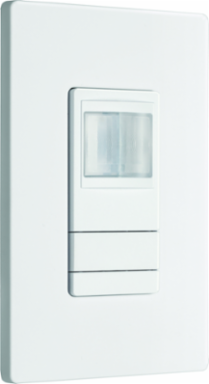

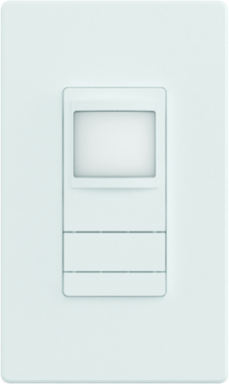

Acuity Brands WSXA WH Wall Switch Motion Sensor, White, 20 ft Detection, 120-277V, 5-Year Warranty

Wall Switch Motion Sensor, White, 20 ft Detection, 120-277V, 5-Year Warranty
Wall Switch Motion Sensor, White, 20 ft Detection, 120-277V, 5-Year Warranty
Wall Switch Motion Sensor, White, 20 ft Detection, 120-277V, 5-Year Warranty
Wall Switch Motion Sensor, White, 20 ft Detection, 120-277V, 5-Year Warranty
Wall Switch Motion Sensor, White, 20 ft Detection, 120-277V, 5-Year Warranty
Wall Switch Motion Sensor, White, 20 ft Detection, 120-277V, 5-Year Warranty
Wall Switch Motion Sensor, White, 20 ft Detection, 120-277V, 5-Year Warranty
  • MPN: WSXA WH
  • UPC: 194994625902
  • PPN: LTH-WSXA WH
  • UNSPSC: 39122236

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$66.64/ EA

Description

All WSXA Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private restrooms, closets, copy rooms, or any other small enclosed space.

Features

  • All WSXA Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private restrooms, closets, copy rooms, or any other small enclosed space.
  • WIRING: WSXA Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection
  • COMPATIBILITY: Compatible w/LEDs, electronic & magnetic ballasts, CFLs, & incandescents
  • DIMMING: Compatible with 0-10V dimming luminaries
  • RATINGS: Energy Management Equipment, UL916 (E167435)
  • PROTECTION: Mis-wire Protection - interchangeable line and load wires prevent damage to device if line voltage is mis-wired to 0-10V wires
  • POWER: Device accommodates powering over ground or neutral connection (patent pending) Ultra-low current leakage (<0.5 mA) when connected via ground
  • PROGRAMMABLE: Push-button programmable without removing cover plate - adjustable time delays & operating modes
  • MOUNTING: Single-Gang Box
  • WARRANTY: 5-year limited warranty

Specifications

Specifications

Product Type
Switch
Standard
cUL,C-UL-US
Color
White
Environmental Conditions
Indoor
Average Life
Not Applicable
Lamp Included
Not Applicable
Height
2.74 in
Weight
0.359 lbs
Country of Origin
Mexico
ApplicationBehavioral Health,Education,Government,Healthcare,Hospitality,House of Worship,Offices & Banks,Retail,Sports and Recreation
Voltage Rating120-277
MountingSurface
FinishMatte
Maximum Operating Temperature60
Warranty5 Year Limited
Length1.63 in
Width1.68 in
