Documentation & Downloads

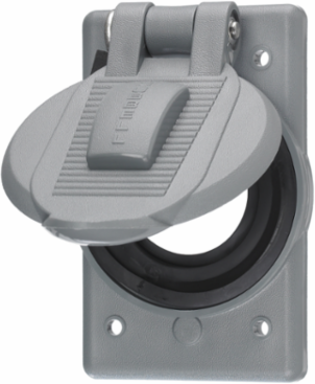

Hubbell Wiring Device-Kellems HBL7428WOG Weatherproof Wallplate Cover, 1-Gang, 2.15 Inch Opening, Gray
- MPN: HBL7428WOG
- UPC: 783585809915
- PPN: HBL-HBL7428WOG
- UNSPSC: 39121304
CAD
$133.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wallplates and Boxes, Weatherproof Covers, 1-Gang, 1) 2.15" Opening, Standard Size, Gray Polycarbonate, Device Mount.
Features
- For use with 30A, 4 wire Hubbellock receptacles
- Weatherproof in Open Position with Device Mated
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.09 in
- Length
- 4.56 in
- Color
- Gray
- Shape
- Rectangle
- Special Features
- Weatherproof in Open Position with Device Mated
- Type
- Covers
- Engineering Drawing 1 Display Text
- HBL7428WOG AutoCAD Drawing
- Number Of Outlets
- 1-Device
- Class Code
- A24
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A24A290
- Construction
- Molded
- Number of Gang(s)
- 1-Gang
- BOX SIZE
- 4.400x17.800x7.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585809915
- Case Weight
- 3.250 lb.
- Lowest Level UOM
- Each
Dimensions4.56 in x 3.28 in x 1.09 in
Industry Standard(s)UL Listed - Canadian and U.S.
Application30A, 4 wire Hubbellock receptacle
Number of Outlet1-Device
Size4.56 in x 3.28 in x 1.09 in
StandardUL Listed - Canadian and U.S.
Width3.28 in
Display Size1-Gang
StyleFor 30A, 4 Wire Hubbellock Receptacles -Face Diameter 1.55–1.58 in.
Description - InvoiceLIFT COVER, DEVICE MOUNT, GREEN
Harmonization Code3925900000
MSDS FlagNo
Material - Mounting HardwareVertical FS/FD Mount- Mounting Screws
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.4 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code3359326105
