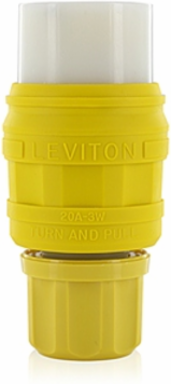

Leviton 76W47-C Wetguard Locking Connector 20 Amp, 125 Volt, NEMA L5-20, Yellow
Leviton 76W47-C Wetguard Locking Connector 20 Amp, 125 Volt, NEMA L5-20, Yellow
- MPN: 76W47-C
- UPC: 078477525043
- PPN: LEV-76W47-C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$92.07/ EA
Description
20 Amp, 125 Volt, NEMA L5-20, 2P, 3W, Locking Connector for Single Inlet, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
Material Specifications
- Assembly Screws
- Stainless Steel, Non-Magnetic
- Body Material
- Nylon
- Compression Nut
- Nylon
- Strain Relief Clamp
- Nylon
- Wiring Module
- Nylon
Blades/Contacts, Terminal ClampsElectroless Nickel-coated Brass
BushingSantoprene TPV
HuskSantoprene TPV
Terminal ScrewsElectroless Nickel-coated Brass
Mechanical Specifications
- Cord Grip Range (in)
- .375-.875
- Terminal Accom.
- #16 AWG to #10 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Wetguard
- Device Type
- Locking Connector
ColorYellow
Environmental Specifications
- Enclosure Rating
- NEMA 4, 4X, 12 IEC IP66
- Flammability
- Rated V-2 per UL 94 (wiring module)
EnvironmentWet
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
