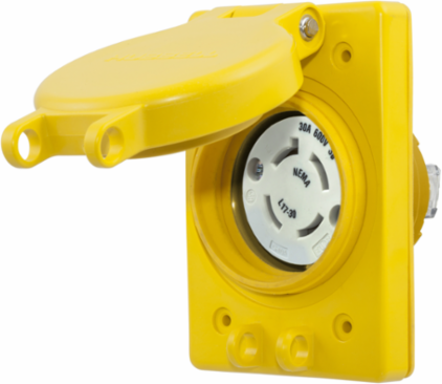

Hubbell Wiring Device-Kellems HBL69W77 Watertight Twist-Lock Receptacle, NEMA L17-30R, 30A, 3 Pole, 4 Wire, Yellow
- MPN: HBL69W77
- UPC: 783585433301
- PPN: HBL-HBL69W77
- UNSPSC: 39121406
CAD
$163.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase 600V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L17-30R, Yellow
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 3-Pole
- Temperature Rise
- 30°C max per UL498 at rated current
- Size
- 4.56 in x 3.10 in x 2.92 in
- Width
- 3.10 in
- Material
- PBT, Thermoplastic elastomer, Nickel plated brass, White Nylon, Stainless Steel, Clear polycarbonate
- NEMA Rating
- L17-30R
- Country of Origin
- PR
Voltage600 VAC
Number of Wires4-Wire
Operating Temperature Range-40°C to +60°C
Length4.56 in
Height2.92 in
Seal TypeThermoplastic elastomer
StandardsIP69K In Use; Meets NEMA WD-1, WD-6 and ANSI Standards
ColorYellow
