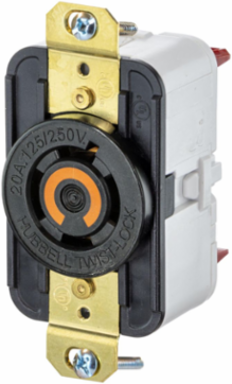

Hubbell Wiring Device-Kellems HBL2410ST EdgeConnect Twist-Lock Receptacle 20A 125/250V L14-20R 3 Poles
- MPN: HBL2410ST
- UPC: 783585788593
- PPN: HBL-HBL2410ST
- UNSPSC: 39121406
CAD
$61.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EdgeConnect™ Twist-Lock® Receptacle, 20A 125/250V, L14-20R, BK, with Spring Termination
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- High-impact, abuse-resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 1.468 in |
| Length | 3.28 in |
| Number of Poles | 3 |
| Size | 3.28 in x 1.7 in x 1.468 in |
| Voltage Rating | 125/250 V |
| Width | 1.7 in |
| General Literature Asset 2 Display Text | Healthcare Product Solutions |
| Number Of Poles | 3 |
| Class Code | A08 |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 50 |
| Pallet - GTIN - Package | 70783585788592 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Dimensions | 3.28 in x 1.7 in x 1.468 in |
|---|---|
| Industry Standard(s) | WR Rating |
| Amperage Rating | 20 A |
| Number of Wires | 4 |
| Standard | WR Rating |
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology |
| General Literature Asset 3 Display Text | EdgeConnect™ Technology FAQ |
| Number Of Wires | 4 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A08A110 |
| BOX SIZE | 7.600x12.500x8.800 (in) |
| Carton - Number of Sub Packs | 50 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585788593 |
| Case Weight | 5.036 lb. |
| Pallet Height | 48.000 in |
| Pallet Weight | 313.000 lb. |
| NAICS Code | 335931A102 |
