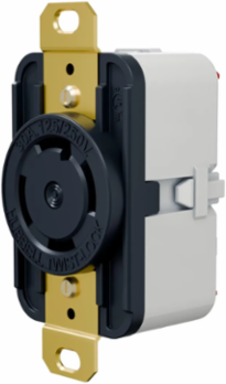

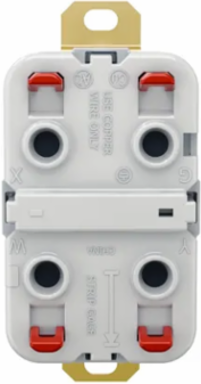

Hubbell Wiring Device-Kellems HBL2710ST EdgeConnect Twist-Lock Receptacle 30A 125/250V L14-30R 3 Poles
Hubbell Wiring Device-Kellems HBL2710ST EdgeConnect Twist-Lock Receptacle 30A 125/250V L14-30R 3 Poles
- MPN: HBL2710ST
- UPC: 783585788548
- PPN: HBL-HBL2710ST
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$92.12/ EA
Description
EdgeConnect™ Twist-Lock® Receptacle, 30A 125/250V, L14-30R, BK, with Spring Termination
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- High-impact, abuse-resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
Specifications
Specifications
- Country of Origin
- China
- Height
- 1.468 in
- Length
- 3.28 in
- Number of Poles
- 3
- Size
- 3.28 in x 1.7 in x 1.468 in
- Voltage Rating
- 125/250 V
- Width
- 1.7 in
- General Literature Asset 2 Display Text
- Healthcare Product Solutions
- Number Of Poles
- 3
- Class Code
- A08
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50
- Pallet - GTIN - Package
- 70783585788547
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions3.28 in x 1.7 in x 1.468 in
Industry Standard(s)WR Rating
Amperage Rating30 A
Number of Wires4
StandardWR Rating
Wire Size14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)
General Literature Asset 1 Display TextEdgeConnect™ Technology
General Literature Asset 3 Display TextEdgeConnect™ Technology FAQ
Number Of Wires4
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A110
BOX SIZE7.600x12.500x8.700 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack00783585788548
Case Weight4.922 lb.
Pallet Height45.600 in
Pallet Weight1091.400 lb.
