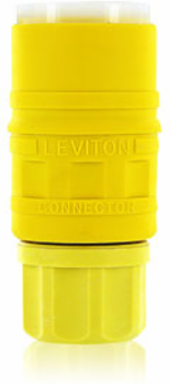

Leviton 79W47-C Wetguard Watertight Locking Connector 15 Amp, 125 Volt, NEMA 5-15, Yellow
Leviton 79W47-C Wetguard Watertight Locking Connector 15 Amp, 125 Volt, NEMA 5-15, Yellow
- MPN: 79W47-C
- UPC: 078477524978
- PPN: LEV-79W47-C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$50.20/ EA
Description
15 Amp, 125 Volt, NEMA 5-15, 2P, 3W, Straight Blade Connector for Single Inlet, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
Material Specifications
- Assembly Screws
- Stainless Steel, Non-Magnetic
- Body Material
- Nylon
- Compression Nut
- Nylon
- Strain Relief Clamp
- Nylon
- Wiring Module
- Nylon
Blades/Contacts, Terminal ClampsElectroless Nickel-coated Brass
BushingSantoprene TPV
HuskSantoprene TPV
Terminal ScrewsElectroless Nickel-coated Brass
Mechanical Specifications
- Cord Grip Range (in)
- .234-.687
- Terminal Accom.
- #18 AWG to # 10 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Wetguard
- Device Type
- Straight Blade Connector
ColorYellow
Environmental Specifications
- Enclosure Rating
- NEMA 4, 4X, 12 IEC IP66
- Flammability
- Rated V-2 per UL 94 (wiring module)
EnvironmentWet
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
