WDK 10 BL
WDK 10 BL
Weidmuller

Weidmuller 1186750000 WDK 10 BL

  • MPN: 1186750000
  • PPN: WDM-1186750000

CAD

$9.24

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

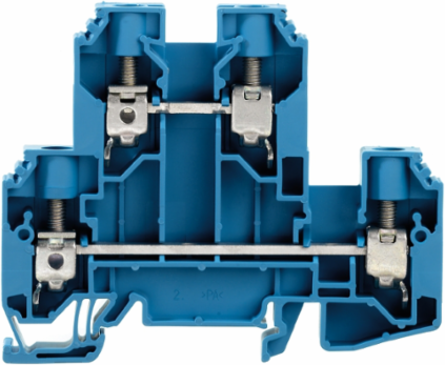

Feed-through terminal, Double-tier terminal, Screw connection, 10 mm², 800 V, 57 A, blue

Documentation & Downloads

Specifications

Approvals

Approvals
CSA, EAC, UR
UL File Number Search
E60693
ROHSConform

Dimensions And Weights

Width
9.9 mm
Height
85 mm
Depth
69 mm
Depth including DIN rail
69.5 mm
Width (inches)0.39 inch
Height (inches)3.346 inch
Depth (inches)2.717 inch
Net weight39.84 g

Csa Rating Data

Certificate No. (CSA)
200039-1057876
Current size C (CSA)
64 A
Voltage size B (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section min. (CSA)
18 AWG
Current size B (CSA)64 A
Current size D (CSA)5 A
Voltage size C (CSA)600 V
Wire cross section max. (CSA)6 AWG

Additional Technical Data

Open sides
right
Type of mountingSnap-on

Material Data

Material
Wemid
UL 94 flammability rating
V-0
Colourblue

Safety Note

Safety notice
Safety Information

Classifications

ETIM 6.0
EC000897
eClass 9.0
27-14-11-20
eClass 10.0
27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20

System Specifications

Version
Screw connection, Double terminal, for screwable cross-connection, One end without connector
Number of potentials
2
Number of clamping points per level
2
Levels cross-connected internally
No
Rail
TS 35
PE function
No
End cover plate requiredYes
Number of levels2
Number of potentials per tier1
PE connectionNo
N-functionYes
PEN functionNo

Temperatures

Storage temperature, max.
40 °C
Storage temperature
10 °C...40 °C
Continuous operating temp., max.
120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C

Rating Data

Rated cross-section
10 mm²
Rated current
57 A
Standards
IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x
1.82 W
Pollution severity
3
Rated voltage800 V
Current at maximum wires70 A
Volume resistance according to IEC 60947-7-x0.56 mΩ
Rated impulse withstand voltage8 kV
Surge voltage categoryIII

Conductors For Clamping (Rated Connection)

Blade size
1.0 x 5.5 mm
Clamping range, min.
1.5 mm²
Connection cross-section, stranded, max.
16 mm²
Connection direction
on side
Number of connections
4
Tightening torque, max.
1.9 Nm
Twin wire-end ferrules, max.
6 mm²
Type of connection
Screw connection
Wire connection cross section AWG, min.
AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
16 mm²
Wire connection cross-section, finely stranded, min.
1.5 mm²
Wire connection cross-section, solid core, min.
1.5 mm²
Clamping range, max.16 mm²
Clamping screwM 4
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1B6
Stripping length12 mm
Tightening torque, min.1.2 Nm
Twin wire-end ferrules, min.1.5 mm²
Wire connection cross section AWG, max.AWG 6
Wire connection cross section, finely stranded, max.16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.1.5 mm²
Wire connection cross-section, solid core, max.16 mm²

Ul Rating Data

Certificate No. (UR)
E60693
Conductor size Factory wiring min. (UR)
18 AWG
Conductor size Field wiring min. (UR)
18 AWG
Current size C (UR)
64 A
Voltage size B (UR)
600 V
Voltage size D (UR)
600 V
Wire cross section min. (UR)
18 AWG
Conductor size Factory wiring max. (UR)6 AWG
Conductor size Field wiring max. (UR)6 AWG
Current size B (UR)64 A
Current size D (UR)5 A
Voltage size C (UR)600 V
Wire cross section max. (UR)6 AWG
