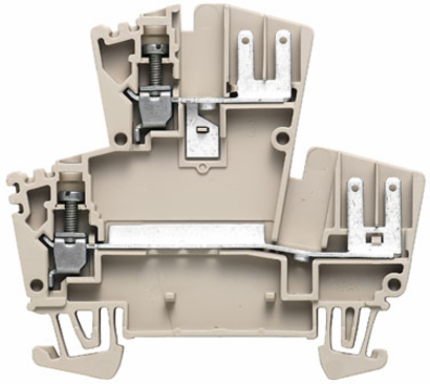

Weidmuller 1021600000 WDK 2.5 F
- MPN: 1021600000
- PPN: WDM-1021600000
CAD
$9.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
WDK 2.5 F
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, EAC, LLOYDSREG
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 69.5 mm
- Depth
- 62.5 mm
- Depth including DIN rail
- 63 mm
- Net weight
- 11.73 g
Width (inches)0.201 inch
Height (inches)2.736 inch
Depth (inches)2.461 inch
Weight11.89 g
Csa Rating Data
- Certificate No. (CSA)
- 12400-135
- Voltage size C (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size C (CSA)10 A
Wire cross section max. (CSA)12 AWG
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.1.5 mm²
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-11
System Specifications
- End cover plate required
- Yes
- Number of clamping points per level
- 3
- Rail
- TS 35
Number of levels2
Levels cross-connected internallyNo
Other Connections
- Cable-lug connection
- Not slit
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Connection type, additional connection
- Flat-blade connection
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 12 A
- Standards
- IEC 61210, In accordance with IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage400 V
Current at maximum wires12 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage6 kV
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 0.6 Nm
- Torque level with DMS electric screwdriver
- 1
- Type of connection 2
- Flat-blade connection
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.4 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A3
Stripping length10 mm
Tightening torque, min.0.4 Nm
Type of connectionScrew connection
Wire connection cross section AWG, max.AWG 12
Wire connection cross section, finely stranded, max.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.4 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 22 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size C (UR)
- 300 V
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size C (UR)10 A
