Weidmuller 1027800000 WDUL 4/50K

  • MPN: 1027800000
  • PPN: WDM-1027800000

CAD

$43.76

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

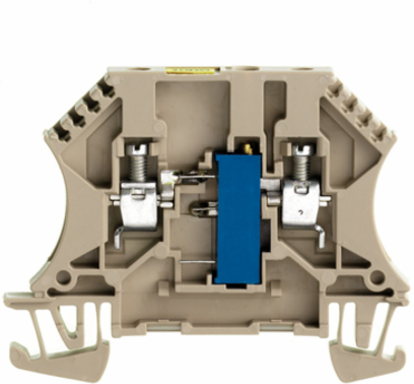

W-Series, Component terminal, Rated cross-section: 4 mm², Screw connection

Documentation & Downloads

Specifications

Approvals

Approvals
CE, EAC
ROHSConform

Dimensions And Weights

Width
6.5 mm
Height
60 mm
Depth
46.5 mm
Depth including DIN rail
47 mm
Width (inches)0.256 inch
Height (inches)2.362 inch
Depth (inches)1.831 inch
Net weight12.7 g

Dimensions

TS 35 offset
32 mm

2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)

Wire connection cross section, finely stranded, two clampable wires, min.
0.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.1.5 mm²

Additional Technical Data

Explosion-tested version
No
Open sides
right
Number of similar terminals1
Type of mountingSnap-on

Material Data

Material
Wemid
UL 94 flammability rating
V-0
Colourdark beige

Safety Note

Safety notice
Safety Information

Classifications

ETIM 6.0
EC000903
eClass 9.0
27-14-11-27
eClass 10.0
27-14-11-27
ETIM 7.0EC000903
eClass 9.127-14-11-47
UNSPSC30-21-18-11

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

System Specifications

Version
Screw connection, Compensating terminals, With resistor, One end without connector
Number of potentials
1
Number of clamping points per level
2
Levels cross-connected internally
No
Rail
TS 35
PE function
No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo

Temperatures

Storage temperature, max.
40 °C
Storage temperature
10 °C...40 °C
Continuous operating temp., max.
120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C

Rating Data

Rated cross-section
4 mm²
Current at maximum wires
6 A
Volume resistance according to IEC 60947-7-x
1 mΩ
Pollution severity
3
Rated current120 mA
StandardsIEC 60947-7-1
Power loss in accordance with IEC 60947-7-x1.02 W
Surge voltage categoryIII

Conductors For Clamping (Rated Connection)

Blade size
0.6 x 3.5 mm
Clamping range, min.
0.13 mm²
Connection cross-section, finely stranded, max.
4 mm²
Connection cross-section, stranded, max.
6 mm²
Connection direction
on side
Number of connections
2
Tightening torque, max.
0.8 Nm
Type of connection
Screw connection
Wire connection cross section AWG, min.
AWG 22
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded, min.
0.5 mm²
Wire connection cross-section, solid core, min.
0.5 mm²
Clamping range, max.6 mm²
Clamping screwM 3
Connection cross-section, finely stranded, min.0.5 mm²
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A4
Stripping length9 mm
Tightening torque, min.0.6 Nm
Wire connection cross section AWG, max.AWG 12
Wire connection cross section, finely stranded, max.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.6 mm²
