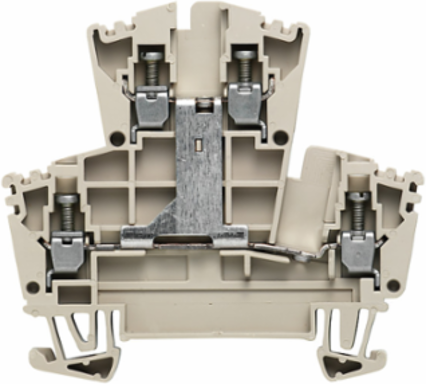

Weidmuller 1022300000 WDK 2.5V
- MPN: 1022300000
- PPN: WDM-1022300000
CAD
$9.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, dark beige
Documentation & Downloads
Specifications
Additional
- Rated Current
- 24 A
- Current (UL Rating)
- 20 A
- Torque
- 0.4-0.6 Nm
- Height
- 69.5 mm / 2.736 inch
- Depth Including DIN Rail
- 63.5 mm
- Number of Levels
- 2
- Mounting Type
- Snap-on
- Rated Cross-Section
- 2.5 mm²
- Wire Connection Cross Section Min
- 0.05 mm²
- Material
- Wemid
- Flammability Rating
- UL 94 V-0
- Rated Impulse Withstand Voltage
- 6 kV
- Pollution Severity
- 3
- Storage Temperature
- 10 °C to 40 °C
Rated Voltage400 V
Voltage (UL Rating)600 V
Width5.1 mm / 0.201 inch
Depth62.5 mm / 2.461 inch
Number of Connections4
Blade Size0.6 x 3.5 mm
Tightening ScrewM 2.5
Wire Connection Cross Section Max4 mm²
Wire Connection Cross Section AWG12-30 AWG
ColourDark Beige
ComplianceRoHS, UL Listed, IECEx, ATEX, CSA
Power Loss0.77 W
Operating Temperature Range-50 °C to 120 °C
