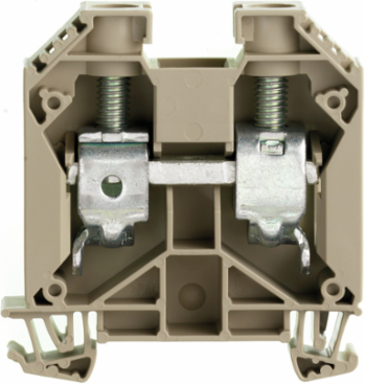

Weidmuller 1020500000 WDU 35
Weidmuller 1020500000 WDU 35
- MPN: 1020500000
- PPN: WDM-1020500000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$12.08/ EA
Description
Feed-through terminal, Screw connection, 35 mm², 1000 V, 125 A, dark beige
Specifications
Approvals
- Approvals
- CE, CSA, CSAEX, CURUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, INMETRO, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 16 mm
- Height
- 60 mm
- Depth
- 62.5 mm
- Depth including DIN rail
- 63 mm
- Net weight
- 51.38 g
Width (inches)0.63 inch
Height (inches)2.362 inch
Depth (inches)2.461 inch
Weight54 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Voltage size C (CSA)
- 600 V
Current size C (CSA)150 A
Wire cross section min. (CSA)12 AWG
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Cross-section for connected wire, stranded, two clampable wires, min.
- 16 mm²
- Wire connection cross section, finely stranded, two clampable wires, min.
- 2.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 2.5 mm²
Cross-section for connected wire, stranded, two clampable wires, max.16 mm²
Wire cross-section, finely stranded, two clampable wires, max.16 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.16 mm²
Additional Technical Data
- Explosion-tested version
- Yes
- Open sides
- right
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, for screwable cross-connection, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionYes
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -60 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.130 °C
Rating Data
- Rated cross-section
- 35 mm²
- Rated current
- 125 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 4 W
- Pollution severity
- 3
Rated voltage1,000 V
Current at maximum wires150 A
Volume resistance according to IEC 60947-7-x0.26 mΩ
Rated impulse withstand voltage8 kV
Surge voltage categoryIII
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO14ATEX1338U
- Max. voltage (ATEX)
- 690 V
- Wire cross section max. (ATEX)
- 35 mm²
- Current (IECEX)
- 115 A
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXULD14.0005U
Current (ATEX)115 A
Max. voltage (IECEX)690 V
Wire cross section max. (IECEX)35 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 6.5 x 1.2 mm
- Clamping range, min.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 50 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 5 Nm
- Twin wire-end ferrules, max.
- 16 mm²
- Type of connection
- Screw connection
- Wire connection cross section AWG, min.
- AWG 12
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 35 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 35 mm²
- Wire connection cross-section, finely stranded, min.
- 2.5 mm²
- Wire connection cross-section, solid core, min.
- 2.5 mm²
Clamping range, max.50 mm²
Clamping screwM 6
Connection cross-section, stranded, min.2.5 mm²
Gauge to IEC 60947-1B8
Stripping length18 mm
Tightening torque, min.4 Nm
Twin wire-end ferrules, min.1.5 mm²
Wire connection cross section AWG, max.AWG 2
Wire connection cross section, finely stranded, max.35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.2.5 mm²
Wire connection cross-section, solid core, max.16 mm²
Strap Connection
- Band 1, Number of layers, min.
- 3: 9 x 0.8
Band 1, number of layers, max.9: 9 x 0.8
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 12 AWG
- Conductor size Field wiring min. (UR)
- 12 AWG
- Voltage size C (UR)
- 1000 V
Conductor size Factory wiring max. (UR)0 AWG
Conductor size Field wiring max. (UR)0 AWG
Current size C (UR)150 A
