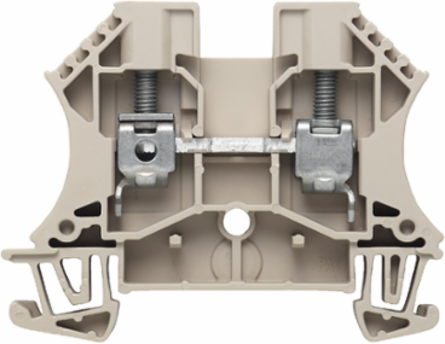

Weidmuller 1020200000 WDU 6
- MPN: 1020200000
- PPN: WDM-1020200000
CAD
$1.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Feed-through terminal, Screw connection, 6 mm², 800 V, 41 A, dark beige
Documentation & Downloads
Specifications
Additional
| Rated Voltage | 800 V |
|---|---|
| Tightening Torque | 0.8 - 1.6 Nm |
| Wire Cross Section Max | 10 mm2 |
| Wire Cross Section AWG Max | AWG 8 |
| Continuous Operating Temperature Range | -60 6C to 130 6C |
| Mounting Rail | TS 35 |
| Number of Connections | 2 |
| Height | 60 mm |
| Net Weight | 12.75 g |
| Flammability Rating | UL 94 V-0 |
| Ambient Temperature Range | -5 6C to 40 6C |
| Compliance | RoHS, UL Listed (E60693), cURus (E184763), IECEx, ATEX, CSA Certified, CE, CSAEX, CURUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, INMETRO, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR |
| Rated Current | 41 A |
|---|---|
| Clamping Range | 0.22 - 10 mm2 |
| Wire Cross Section AWG Min | AWG 26 |
| Rated Impulse Withstand Voltage | 8 kV |
| Mounting Type | Snap-on |
| Connection Type | Screw connection |
| Width | 7.9 mm |
| Depth | 46.5 mm |
| Material | Wemid |
| Pollution Severity | 3 |
| Storage Temperature Range | 10 6C to 40 6C |
| Color | Dark Beige |
