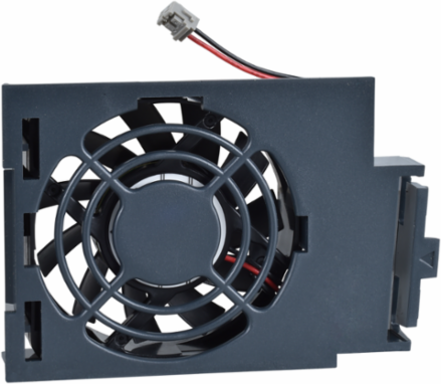

Schneider Electric VZ3V32A100 Fan Kit for Altivar 32/320 Variable Speed Drive, 0.18 to 1.5kW

MPN: VZ3V32A100
PPN: SCH-VZ3V32A100

$48.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is a wear part for Drive Altivar 32 and Altivar 320. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV32 from 0.18kw to 1.5kw and a rated voltage from 200V to 500V, for Altivar 320 from 0.18kw to 1.5kw and a rated voltage from 200V to 500V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17cm (width) x 23cm (Length) x 7cm (Height) and weighs 178g. This power fan is compatible with ATV320U02M2B to U07M2B, ATV320U04N4B to U15N4B. This kit include 1 Fan, 1 Mounting bracket, 1 Instruction sheet.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Indonesia, United States

Important Information Attributes

Kit Composition	fan, mounting bracket, instruction sheet
Local Publishable Date	2025-07-10
Stocking Flag	N
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Product Kit Identifier	N
Product Or Component Type	fan
Sustainable Packaging	No
Accessory / Separate Part Destination	variable speed drive
Nbr. Of Units In Pkg.	1
Take-back	No

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Service Catalog Item	Spare part
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1830
China Rohs In Scope	No
Product Contributes To Saved And Avoided Emissions	No
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Accessory / Separate Part Category	cooling accessory
Accessory / Separate Part Type	fan kit
Package Weight(Lbs)	195.000 g
Customs Code	8414591500

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Product Compatibility

variable speed drive ATV32 0.55 kW, 380...500 V three phase, variable speed drive ATV32 0.75 kW, 380...500 V three phasevariable speed drive ATV320...B 0.37 kW, 200...240 V single phase, variable speed drive ATV320...B 0.55 kW, 200...240 V single phase, variable speed drive ATV320...B 0.75 kW, 200...240 V single phase, variable speed drive ATV320...B 0.37 kW, 380...500 V three phase, variable speed drive ATV320...B 0.55 kW, 380...500 V three phase, variable speed drive ATV320...B 0.75 kW, 380...500 V three phase, variable speed drive ATV320...B 1.1 kW, 380...500 V three phase, variable speed drive ATV320...B 1.5 kW, 380...500 V three phasevariable speed drive ATV32 0.18 kW, 200...240 V single phase, variable speed drive ATV32 0.37 kW, 200...240 V single phase, variable speed drive ATV32 0.55 kW, 200...240 V single phase, variable speed drive ATV32 0.75 kW, 200...240 V single phasevariable speed drive ATV32 0.37 kW, 380...500 V three phase, variable speed drive ATV32 1.1 kW, 380...500 V three phase, variable speed drive ATV32 1.5 kW, 380...500 V three phase, variable speed drive ATV320...B 0.18 kW, 200...240 V single phase

Eu Rohs Directive

Compliant
