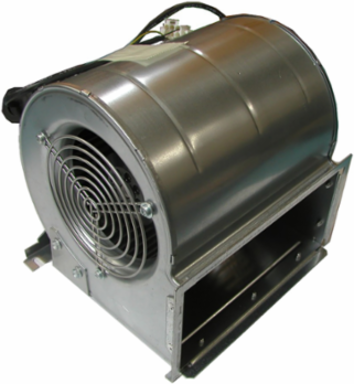

Schneider Electric VZ3V1212 Wear part, fan kit heatsink, variable speed drive, Altivar 61, Altivar 71, Altivar Process 600 900, from 220 to 315kW
- MPN: VZ3V1212
- PPN: SCH-VZ3V1212
CAD
$2536.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is a wear part for Drive Altivar 61, Drive Altivar 71 and Drive Altivar Process 600, Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 220kw to 315kw and a rated voltage from 380V to 480V. This Fan increase the Drive life time. The quantity of Fan required depend on the drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 41cm (width) x 41cm (Length) x 34cm (Height) and weighs 7.454kg. This power fan is compatible with ATV630C22N4 to C31N4, ATV930C22N4, ATV930C22N4C to ATV930C31N4C . Electronic power fan for drive, with 1 unit for ATV630C22N4, 2 units for ATV630C25N4, and 3 units for ATV630C31N4. Electronic power fan for drive, with 1 unit for ATV930C22N4(C), 2 units for ATV930C25N4C, and 3 units for ATV930C31N4C Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW. Drives for variable torque from 0.75 to 800 Kw. Drives for heavy duty industry from 0.37 to 630 kW.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, China, Germany, France, United States
Important Information Attributes
- Kit Composition
- fan, mounting bracket, instruction sheet
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Serviceability
- No
- Service Catalog Item
- Spare part
- Scope Perimeter
- At least in Europe
- Product Kit Identifier
- N
- Product Or Component Type
- fan
- Sustainable Packaging
- No
- Accessory / Separate Part Type
- fan kit
- Package Weight(Lbs)
- 7.407 kg
- Customs Code
- 8414591500
Local Data StatusPublishable
Return IndicatorY
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Weee ScopeOut
Product Contributes To Saved And Avoided EmissionsNo
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Accessory / Separate Part Categorycooling accessory
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Product Compatibility
- variable speed drive ATV930 wall mount 250-250 kW 380...480 V 2 per drivevariable speed drive ATV930 wall mount 315-315 kW 380...480 V 3 per drive, variable speed drive ATV61, variable speed drive ATV71, variable speed drive ATV61 Plus, variable speed drive ATV71 Plus, variable speed drive ATV71Q, variable speed drive ATV61Q, variable speed drive ATV630 wall mount 220-220 kW 380...480 V 1 per drivevariable speed drive ATV630 wall mount 250-250 kW 380...480 V 2 per drivevariable speed drive ATV630 wall mount 315-315 kW 380...480 V 3 per drive, variable speed drive ATV930 wall mount 220-220 kW 380...480 V 1 per drive
Take BackNo
General Attributes
- Product Or Component Type
- fan
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
