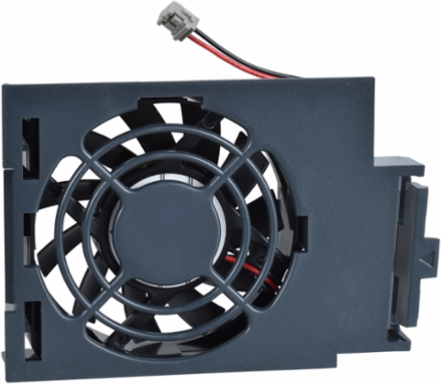

Telemecanique Sensors VZ3V3103 Wear part, fan kit for variable speed drive, Altivar 212, Altivar 312, from 5.5 to 11kW, three phase

MPN: VZ3V3103
PPN: SCH-VZ3V3103

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$103.62/ EA

Qty:

Loading add to cart quantity...

Description

This product is a wear part for Drive Altivar 212, Altivar 312. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV212 from 5.5kw to 11kw and a rated voltage from 200V to 480V, for Altivar 312 from 5.5kw to 7.5kw and a rated voltage from 200V to 600V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 7cm (width) x 23cm (Length) x 17cm (Height) and weighs 293g. This power fan is compatible with ATV312HU22M2, ATV312HU30M3, HU40M3, ATV312HU22N4, HU40N4, ATV312HU22S6, HU40S7. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. The Altivar 212 is a variable speed drive for 3-phase asynchronous motors from 0.75 kW to 75 kW. Specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC). Energy savings of up to 70% can be achieved compared to a traditional control system, thanks to eco-energy design. The Altivar 312 is designed for robustness and compatibility with the control system architectures of your machines.

Specifications

Complementary

Product Compatibility: variable speed drive ATV312 5.5-7.5 kW 200...240 V three phase || variable speed drive ATV312 5.5-7.5 kW 380...500 V three phase || variable speed drive ATV312 5.5-7.5 kW 525...600 V three phase || variable speed drive ATV212 5.5-7.5 kW 200...240 V three phase || variable speed drive ATV212 7.5-11 kW 380...480 V three phase

Kit Compositionfan || mounting bracket || instruction sheet
