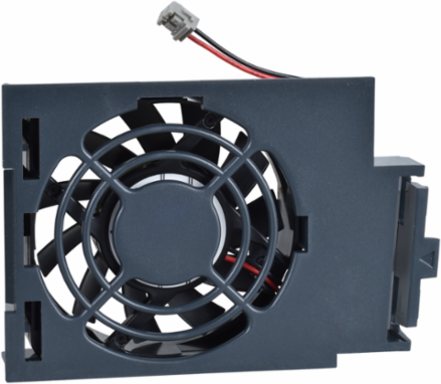

Schneider Electric VZ3V32C100 Variable Speed Drive Fan Kit, 5.5 to 7.5 kW, Three Phase, Cooling Accessory
- MPN: VZ3V32C100
- PPN: SCH-VZ3V32C100
CAD
$50.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is a wear part for Drive Altivar 32 and Altivar 320. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV32 from 5.5kw to 7.5kw and a rated voltage from 380V to 500V, for Altivar 320 from 5.5kw to 7.5kw and a rated voltage from 380V to 600V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 23cm (width) x 17cm (Length) x 7cm (Height) and weighs 280g. This power fan is compatible with ATV320U55M3 to U75M3C, ATV320U55N4B to U75N4B, ATV320U55N4C to U75N4C, ATV320U55S6C to U75S6C. This kit include 1 Fan, 1 Mounting bracket, 1 Instruction sheet.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Indonesia, United States |
|---|
Important Information Attributes
| Kit Composition | fan, mounting bracket, instruction sheet |
|---|---|
| Local Publishable Date | 2025-07-10 |
| Stocking Flag | N |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Product Kit Identifier | N |
| Product Or Component Type | fan |
| Sustainable Packaging | No |
| Accessory / Separate Part Destination | variable speed drive |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Service Catalog Item | Spare part |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1830 |
| China Rohs In Scope | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Accessory / Separate Part Category | cooling accessory |
| Accessory / Separate Part Type | fan kit |
| Package Weight(Lbs) | 280.000 g |
| Customs Code | 8414591500 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | variable speed drive ATV320...B 7.5 kW, 380...500 V three phasevariable speed drive ATV320...C 7.5 kW, 200...240 V three phasevariable speed drive ATV320...C 7.5 kW, 525...600 V three phasevariable speed drive ATV32 5.5 kW, 380...500 V three phase, variable speed drive ATV32 7.5 kW, 380...500 V three phase, variable speed drive ATV320...B 5.5 kW, 380...500 V three phasevariable speed drive ATV320...C 5.5 kW, 200...240 V three phase, variable speed drive ATV320...C 5.5 kW, 525...600 V three phase |
|---|---|
| Eu Rohs Directive | Compliant |
General Attributes
| Product Or Component Type | fan |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
