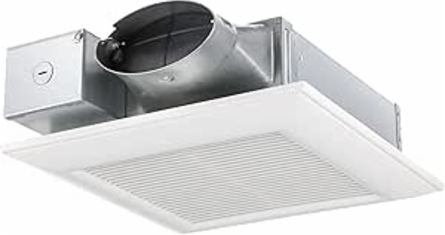

Panasonic FV-0510VS1 WhisperValue® DC™ - Ideal Single / Multi-Family Solution, 50, 80 or 100 CFM

Description

Features

• Revolutionary DC motor with SmartFlow™ Technology
• Features a super slim 3-3/8" Housing Depth
• Unique L-shaped bracket for easy installation
• 4" oval duct allows the fan to easily fit into 2 x 4 construction while allowing a high CFM to be maintained
• WhisperValue® DC™ FV-0510VS1 Fan is the perfect multifamily solution, also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2x4 stud bay. The low profile, 3-3/8" housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere - in ceilings or walls.
• The revolutionary DC motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic DC motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.
• Built-in Pick-A-Flow™ speed selector provides the unique ability to select your required airflow (50, 80 or 100 CFM) with the simple flip of a switch. Being able to choose the proper CFM level gives you the flexibility and assurance that one fan will satisfy a range of ventilation design requirements and perform as promised, even with a complicated duct run.
