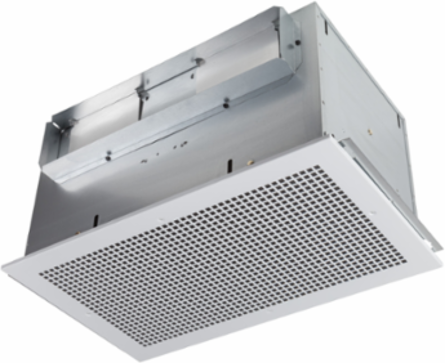

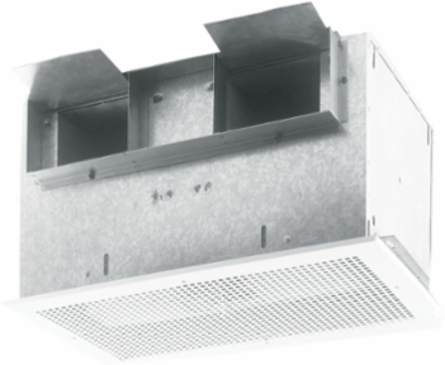

NuTone L700 Broan® LOSONE SELECT™ 701 CFM High Capacity Ventilation Fan, 4.7 Sones
- MPN: L700
- UPC: 026715124565
- PPN: BRO-L700
CAD
$793.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

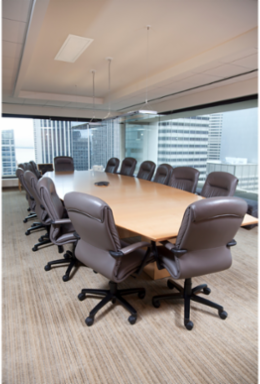

Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
Features
- 701 CFM, Whole home or Commercial Ventilation

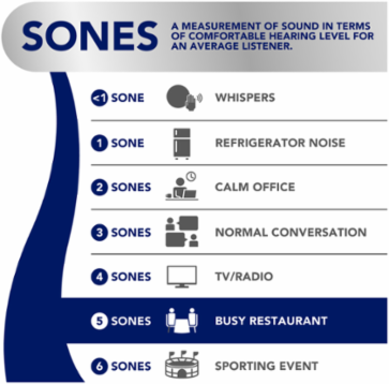

- 4.7 Audible Sones for privacy while using your bathroom
- Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
- Duct horizontally, vertically or in-line with separate adapter
- Quiet automatic backdraft dampers
- Rugged galvanized steel housing design
- AMCA licensed for air and sound performance
- cUL and UL Listed
- Rugged design for residential and/or commercial use
- High CFM capacity with low sones for quite operation
- Duct horizontally, vertically, or in-line
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Duct Height Rectangular (In) | 4.5 |
| Length | 14 in. |
| Housing Height (In) | 11.75 |
| Housing Width (In) | 21.5 |
| Width | 23.25 in. |
| Contain Electronic Equipment | Yes |
| Contain Wood | No |
| Primary Color | White |
| Voltage | 120 |
| Automatic Shut Off | No |
| Ceiling Only | No |
| CFM (HVI) | 701 |
| Decorative | No |
| Duct Shape | Rectangular |
| Globe Material | N/A |
| Grille Shape | Rectangle |
| Housing Material | Galvanized |
| Installation Type | Ceiling;Wall |
| Light Dimmable | No |
| Motion Sensing | No |
| Multi-Speed | No |
| Product Switch Control Type | Wall Control |
| Retail Peggable | No |
| Selectable Speed | No |
| Sones | 4.7 |
| Wall Control Included | No |
| Height | 11.75 in. |
|---|---|
| Duct Width Rectangular (In) | 18.5 |
| Grille Width (In) | 23.25 |
| Length | 12.25 in. |
| Weight | 29.1 lbs. |
| Contain Chemical/Solvent | No |
| Contain Mercury | No |
| Manufacturer Warranty | 1 Year |
| Series | LOSONE SELECT™ Series |
| Amperage (Amps) | 2.9 |
| Built In Timer | No |
| Certification File No. | E17814 |
| Damper Included | No |
| Duct Direction | Horizontal/Vertical |
| Frequency (Hz) | 60 |
| Grille Material | Metal |
| Hardware Included | Yes |
| Humidity Sensing | No |
| Light (Built In) | No |
| Lighted | No |
| Motor Speed (RPM) | 960 |
| Nightlight | No |
| Radiation Damper Available | Yes |
| Room Side Installation Possible | No |
| Sones Max Rating | N/A |
| Type IC | No |
| Wattage | 313 |
Certifications
| CSA Listed | No |
|---|---|
| ETL Listed | No |
| ISTA Rating | ISTA - 1A |
| AMCA Certification | Yes |
| cETL Listed | No |
| ENERGY STAR Certified | No |
| IC Certification | No |
| UL Listed For Use Over Tub & Shower With GFCI | No |
| cUL Listed | Yes |
|---|---|
| HVI Certified | No |
| UL Listed | Yes |
| BQB Certification | No |
| cULus Listed | Yes |
| FCC Certification | No |
| Title 24 Compliant | No |
| Warnock Hersey Certification | No |
