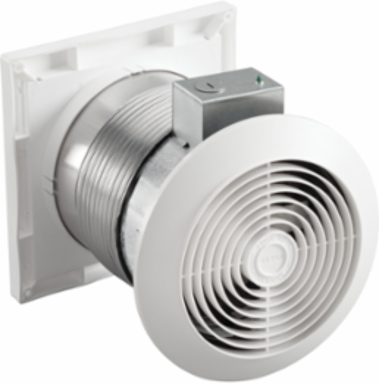

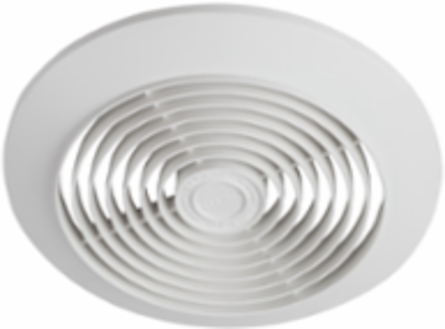

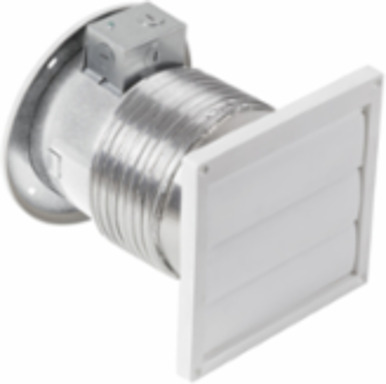

Broan® 70 CFM Through-Wall Ventilation Fan
Broan® 70 CFM Through-Wall Ventilation Fan
Broan® 70 CFM Through-Wall Ventilation Fan
Broan® 70 CFM Through-Wall Ventilation Fan
NuTone

NuTone 512M Broan® 70 CFM Through-Wall Ventilation Fan

  • MPN: 512M
  • UPC: 026715067138
  • PPN: BRO-512M

CAD

$94.64

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Say goodbye to unbearable heat and humidity in the garage, unwanted smells in the kitchen and odors in the laundry room, rec room or garage. The Broan® 70 CFM Through-Wall Ventilation Fan is the perfect solution for rooms up to 65 sq. ft, including a one car garage, or use for spot ventilation near areas such as a work bench, garbage can, car, or lawn mower. The durable galvanized steel housing provides superior protection against the elements and wear and tear. It features a built-in exterior wall cap/vent with bird screen, which reduces install time, no duct work needed. Customize your fan with one of Broan-NuTone’s wall controls. For automatic operation, choose from a humidity or motion sensing control. To automatically turn off the fan after you leave the room or garage, pair the fan with a delay-off or countdown timer. (Wall controls sold separately)

Features

  • 70 CFM - ventilate up to 65 sq. ft.

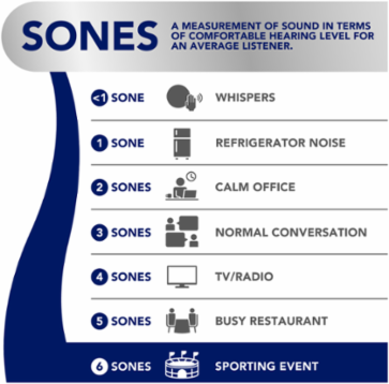

  • 6.0 Audible Sones
  • Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room
  • Built-in exterior wall cap/vent, no ducting needed for installation
  • Effectively ventilate a one car garage, either attached or detached from the home
  • Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
  • Tested and approved for extreme hot and cold weather
  • Motor assembly offers a fast and easy twist-lock installation
  • Housing adjusts to fit walls from 5 1/4” – 10” thick
  • Galvanized steel housing for superior protection against the elements and wear and tear
  • Pair this fan with a motion or humidity sensing wall control to provide automatic ventilation (sold separately)
  • Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (sold separately)
  • Eliminate heat, humidity and odors
  • For garage, kitchen, laundry, and rec rooms up to 65 sq ft
  • Built-in exterior wall cap/vent, no ducting needed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
Duct Diameter
6
Length
4.375 in.
Length
8 in.
Width
8 in.
Contain Electronic Equipment
Yes
Contain Wood
No
Series
Utility Fans
Amperage (Amps)
0.7
Built In Timer
No
Certification File No.
E17814
Damper Included
No
Duct Direction
Horizontal/Vertical
Frequency (Hz)
60
Grille Material
Plastic
Hardware Included
Yes
Humidity Sensing
No
Light (Built In)
No
Lighted
No
Motor Speed (RPM)
2600
Nightlight
No
Radiation Damper Available
No
Retail Peggable
No
Selectable Speed
No
Sones
6
Wall Control Included
No
Height1 in.
Grille Diameter (In)8
Housing Width (In)6
Weight3 lbs.
Contain Chemical/SolventNo
Contain MercuryNo
Primary ColorWhite
Voltage120
Automatic Shut OffNo
Ceiling OnlyNo
CFM (HVI)70
DecorativeNo
Duct ShapeRound
Globe MaterialN/A
Grille ShapeCircle
Housing MaterialSteel
Installation TypeWall
Light DimmableNo
Motion SensingNo
Multi-SpeedNo
Product Switch Control TypeWall Control
Recommended Room Size (Sq Ft)65
Room Side Installation PossibleNo
Sones Max RatingN/A
Type ICNo
Wattage25.4

Certifications

CSA Listed
No
ETL Listed
No
ISTA Rating
ISTA - 1A
AMCA Certification
No
cETL Listed
No
ENERGY STAR Certified
No
IC Certification
No
UL Listed For Use Over Tub & Shower With GFCI
No
cUL ListedNo
HVI CertifiedYes
UL ListedYes
BQB CertificationNo
cULus ListedNo
FCC CertificationNo
Title 24 CompliantNo
Warnock Hersey CertificationNo
