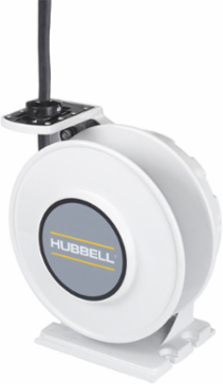

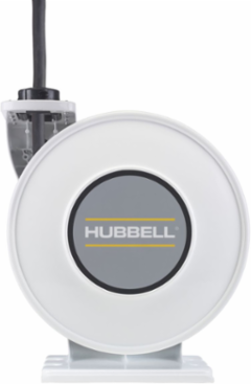

Hubbell Wiring Device-Kellems HBLI45103 White Industrial Cord Reel, 45 Ft, #10/3 SJO, 30 A, 250 VAC
Hubbell Wiring Device-Kellems HBLI45103 White Industrial Cord Reel, 45 Ft, #10/3 SJO, 30 A, 250 VAC
- MPN: HBLI45103
- UPC: 783585669281
- PPN: HBL-HBLI45103
- UNSPSC: 26121635
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2195.25/ EA
Description
White Industrial Reel, UL Type 1, 45 Ft, #10/3 SJO, 30 A, 250 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Specifications
Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 30 A
- Application
- Industrial
- Cable Type
- #10/3 SJO
- Voltage Rating
- 250 VAC
- Engineering Drawing 1 Display Text
- HBLI45103 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Plenum Rated Cord Reel Enclosure
- Number Of Wires
- 3-Wire
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A510
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 38.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Cable Length45 Ft
Width15.000 in
Cable Active Length45 Ft
TypeStandard Reel With Leads
Voltage Rating Description250 VAC
General Literature Asset 1 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
General Literature Asset 3 Display TextCord Reels
StyleLeaded
Description - InvoiceIND REEL, UL TYPE 1, 45' SJO, 10/3, WH
Harmonization Code8544493080
MSDS FlagNo
SeriesinREACH® Series
BOX SIZE17.400x16.500x15.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585669281
Case Weight38.250 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
