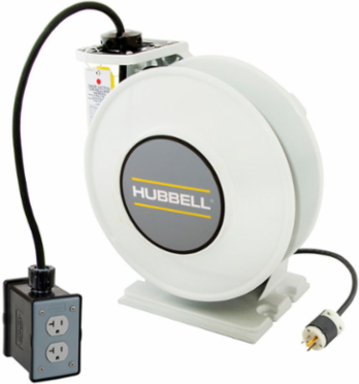

Hubbell Wiring Device-Kellems HBLI45123R20M1 White Industrial Reel, 45 Ft Cable, 20 A, 125 VAC, Duplex Receptacle
- MPN: HBLI45123R20M1
- UPC: 783585669212
- PPN: HBL-HBLI45123R20M1
- UNSPSC: 26121635
CAD
$2213.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
White Industrial Reel with Black Portable Outlet Box and (1) 20A Duplex Receptacle, UL Type 1, 45 Ft, #12/3 SJO, 20 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | cULus Listed |
| Cable Active Length | 45 Ft |
| Standard | cULus Listed |
| Voltage Rating | 125 VAC |
| General Literature Asset 1 Display Text | Wiring Device Solutions for Strategic Manufacturing Facilities |
| General Literature Asset 3 Display Text | Cord Reels |
| Style | Two Outlets |
| Description - Invoice | IND REEL, W/(1) DPLX, BLK, 45', 12/3, WH |
| Harmonization Code | 8544429090 |
| MSDS Flag | No |
| Sub Class Code | A52A510 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 32.050 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet - GTIN - Package | 70783585669211 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Cable Length | 45 Ft |
|---|---|
| Width | 14.200 in |
| Application | Industrial |
| Cable Type | #12/3 SJO |
| Type | Reel With Duplex Receptacle(s) |
| Engineering Drawing 1 Display Text | HBLI45123R20M1 AutoCAD Drawing |
| General Literature Asset 2 Display Text | Plenum Rated Cord Reel Enclosure |
| Number Of Wires | 3-Wire |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | HBL45123R20WM1 |
| Series | inREACH® Series |
| BOX SIZE | 17.100x16.600x14.200 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585669212 |
| Case Weight | 32.050 lb. |
| Pallet Height | 34.200 in |
| Pallet Weight | 512.800 lb. |
| NAICS Code | 335931A107 |
