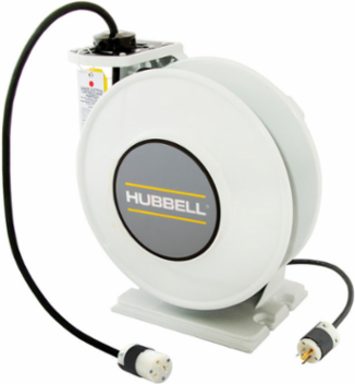

Hubbell Wiring Device-Kellems HBLI25123C20 White Industrial Cord Reel, 25 Ft, #12/3 SJO, 20 A, 125 VAC
- MPN: HBLI25123C20
- UPC: 783585669748
- PPN: HBL-HBLI25123C20
- UNSPSC: 26121635
CAD
$2096.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
White Industrial Reel with HBL5369C, UL Type 1, 25 Ft, #12/3 SJO, 20 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | cULus Listed |
| Cable Active Length | 25 Ft |
| Standard | cULus Listed |
| Voltage Rating | 125 VAC |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| Number Of Wires | 3-Wire |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A510 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 32.850 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet - GTIN - Package | 70783585669747 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Cable Length | 25 Ft |
|---|---|
| Width | 14.300 in |
| Application | Industrial |
| Cable Type | #12/3 SJO |
| Type | Reel With Connector Body |
| Engineering Drawing 1 Display Text | HBLI25123C20 AutoCAD Drawing |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Style | Single Outlet |
| Description - Invoice | IND REEL, W/HBL5369C, 25' SJO, 12/3, WH |
| Harmonization Code | 8544429090 |
| MSDS Flag | No |
| Series | inREACH® Series |
| BOX SIZE | 17.000x16.500x14.300 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585669748 |
| Case Weight | 32.850 lb. |
| Pallet Height | 34.000 in |
| Pallet Weight | 525.600 lb. |
| NAICS Code | 335931A107 |
