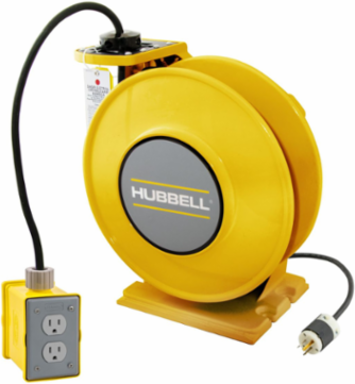

Hubbell Wiring Device-Kellems HBLI45123R220Y Yellow Industrial Reel, 45 Ft, 20 A, 125 VAC, Cord w/ (2) Duplex Receptacles
- MPN: HBLI45123R220Y
- UPC: 783585585062
- PPN: HBL-HBLI45123R220Y
- UNSPSC: 26121635
CAD
$2308.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Yellow Industrial Reel with Yellow Portable Outlet Box and (2) 20A Duplex Receptacles, UL Type 1, 45 Ft, #12/3 SJO, 20 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBLI45123R220Y AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | Pulp & Paper Solutions |
| Description - Invoice | IND REEL, W/(2) DPLX, 45' SJO, 12/3, Y |
| Country of Origin | Mexico |
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | cULus Listed |
| Cable Active Length | 45 Ft |
| Standard | cULus Listed |
| Voltage Rating | 125 VAC |
| Style | Four Outlets |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A510 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 32.150 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet - GTIN - Package | 70783585585061 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 1 Display Text | Wiring Device Solutions for Strategic Manufacturing Facilities |
|---|---|
| General Literature Asset 3 Display Text | PULP & PAPER SOLUTIONS |
| Replaced Catalog Number | HBL45123R220 |
| Cable Length | 45 Ft |
| Width | 14.200 in |
| Application | Industrial |
| Cable Type | #12/3 SJO |
| Type | Reel With Duplex Receptacle(s) |
| Number Of Wires | 3-Wire |
| Class Code | A52 |
| Harmonization Code | 8544429904 |
| MSDS Flag | No |
| Series | inREACH® Series |
| BOX SIZE | 16.900x16.400x14.200 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585585062 |
| Case Weight | 32.150 lb. |
| Pallet Height | 33.800 in |
| Pallet Weight | 514.400 lb. |
| NAICS Code | 335931A107 |
