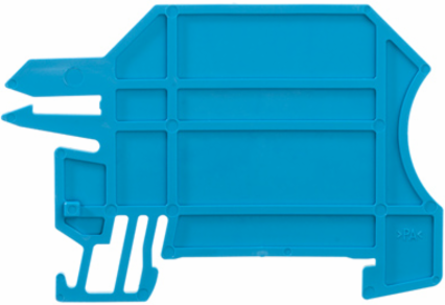

Weidmuller 1050280000 WHP 2.5-35N/10x3 BL
- MPN: 1050280000
- PPN: WDM-1050280000
CAD
$1.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Fixing plate
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 2 mm |
|---|---|
| Height | 60 mm |
| Depth | 47 mm |
| Net weight | 3.876 g |
| Width (inches) | 0.079 inch |
|---|---|
| Height (inches) | 2.362 inch |
| Depth (inches) | 1.85 inch |
Dimensions
| TS 35 offset | 32 mm |
|---|
Additional Technical Data
| Installation advice | Feed-through (bushing) |
|---|
| Snap-on | Yes |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | blue |
|---|
Classifications
| ETIM 6.0 | EC000886 |
|---|---|
| eClass 9.0 | 27-14-11-33 |
| eClass 10.0 | 27-14-11-33 |
| ETIM 7.0 | EC000886 |
|---|---|
| eClass 9.1 | 27-14-11-33 |
| UNSPSC | 30-21-18-27 |
System Specifications
| Version | End and intermediate plate |
|---|
| Rail | TS 35 |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
