Weidmuller 1780920000 WTW WF10/WF12 2300
- MPN: 1780920000
- PPN: WDM-1780920000
CAD
$13.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

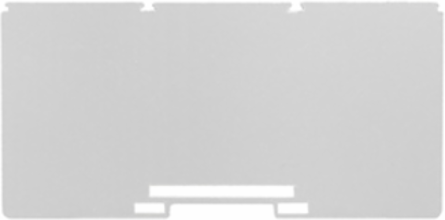

Bolt-type screw terminals, Seperation plate, grey, 2 mm
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 2 mm |
|---|---|
| Height | 155.8 mm |
| Depth | 76.45 mm |
| Mounting dimension - width | 2 mm |
| Width (inches) | 0.079 inch |
|---|---|
| Height (inches) | 6.134 inch |
| Depth (inches) | 3.01 inch |
| Net weight | 41.05 g |
Additional Technical Data
| Installation advice | Direct mounting |
|---|
| Snap-on | No |
|---|
Material Data
| Material | Epoxy resin |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC000886 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC000886 |
|---|---|
| eClass 9.1 | 27-14-11-33 |
| UNSPSC | 30-21-18-27 |
System Specifications
| Version | End and intermediate plate |
|---|
Temperatures
| Operating temperature range, max. | 160 °C |
|---|---|
| Storage temperature, min. | 10 °C |
| Continuous operating temp., min. | -60 °C |
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 160 °C |
