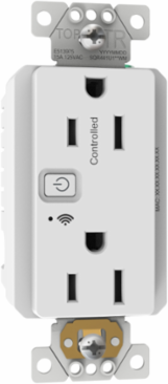

Schneider Electric SQR441U1WHWM Receptacle, X Series, 15A, decorator, WiFi, Matter, white
Schneider Electric SQR441U1WHWM Receptacle, X Series, 15A, decorator, WiFi, Matter, white
- MPN: SQR441U1WHWM
- PPN: SCH-SQR441U1WHWM
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$56.16/ EA
Description
Receptacle, X Series, 15A, decorator, WiFi, Matter, white
Features
- Reduces the potential for electric shocks
- Supports seamless communication among IoT devices
- Control and monitor your energy consumption all from the Schneider Home app
- Integratable with Alexa/Google/Apple
Specifications
Communications & Management Attributes
- Communication Network Type
- Wi-Fi (2.4-2.4 GHz), 10 mW at < 50 m, matter compliance
Physical Attributes
- Color
- White
- Signalling Color
- green
Main Color Tintwhite
Conformance Attributes
- Product Certifications
- cULus
StandardsUL 498
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, SC
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Market Segmentation
- Residential
- H And D Subrange
- X SERIES
- Body Type
- decorator
- Energy Efficiency Optimized
- False
- Market Segment
- residential
- Mounting Mode
- by screws
- Network Type
- AC
- Outlet Standard
- NEMA
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- 1 piece
- Returnability
- Yes
- Signalling Function
- status
- Sustainable Packaging
- No
- Ie Rated Operational Current Ac2
- 15 A
- Connections Terminals
- phase and neutral 2 screw terminal AWG 14...AWG 12) copper
- Stocking Flag
- Y
- Earth Circuit
- self earthing
- Outlet Poles Configuration
- 2P + E
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Consumer, Contractor, Electrician
Local Publishable Date2025-11-13
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
H And D DomainEnergy
Aesthetic NameX Series
Device Applicationpower supply
Main Color Tintwhite
Materialplastic: strap
Network Frequency60 Hz
Number Of Gangs1 gang
Package Weight Lbs168.72 g
Product Or Component Typeconnected socket-outlet
RangeSquare D X Series
Signalling Colorgreen
Surface FinishMatte
Targeted Channelretail
Ue Rated Operational Voltage2125 V
Medium DescReceptacle, X Series, 15A, decorator, WiFi, Matter, white
Product Kit IdentifierN
Mobile App NameSchneider Home
Socket Additional Informationtamper resistant
Connections Terminals3phase and neutral 2 screw terminal AWG 14...AWG 12) copper
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- connected socket-outlet
Contractual Warranty Attributes
- Warranty Period
- 2 year
Warranty2 year
Specifications
- Depth
- 44 mm
Overview Attributes
- Device Presentation
- mechanism with fixing frame
