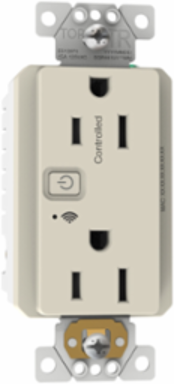

Schneider Electric SQR441U1LAWM Receptacle, X Series, 15A, decorator, WiFi, Matter, light almond
- MPN: SQR441U1LAWM
- PPN: SCH-SQR441U1LAWM
CAD
$51.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These tamper resistant Square D receptacles provide energy monitoring, with Wi-Fi connectivity, to bring intelligent IoT connectivity to your home. Using the Schneider Home mobile app, you can control your receptacles and what's plugged into them. The device is Matter Compliant and supports seamless communication among IoT devices across platforms, regardless of manufacturers. With the Schneider Home app, you can commission and control X Series Wi-Fi devices from anywhere without a hub. Schneider Home mobile app supports integration with popular voice assistants like Amazon's Alexa and Google Assistant for more comprehensive automation. Ideal for hub-free new construction and remodeling projects. Allows you to understand when and where you use electricity through the built-in energy monitoring features. Complete the look with one of the Square D X Series cover plates (not included) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. It is part of the Schneider Home integrated energy management system, which provides monitoring control and automation of your home's energy systems to save money, reduce carbon impact and enjoy energy resiliency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth44 mm
Communications & Management Attributes
- Communication Network Type
- Wi-Fi (2.4-2.4 GHz), 10 mW at < 50 m, matter compliance
Physical Attributes
- Color
- light almond
- Signalling Color
- green
Main Color Tintlight almond
Important Information Attributes
- Persona Type Ids
- EUA, LC, SC
- X Main Color Tint
- light almond
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.2369564928351765
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.069593079892694
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Body Type
- decorator
- Earth Circuit
- self earthing
- Market Segment
- residential
- Mobile App Name
- Schneider Home
- Network Frequency
- 60 Hz
- Number Of Gangs
- 1 gang
- Outlet Standard
- NEMA
- Product Or Component Type
- connected socket-outlet
- Range
- Square D X Series
- Signalling Function
- status
- Socket Number
- 2
- Surface Finish
- Matte
- Targeted Channel
- retail
- Main Color Tint
- light almond
- Pep Code
- ENVPEP2011021EN
- Pep Verification Date
- 2026-05-29
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 103 mm
- Certificate Agency
- cULus
- [Ue] Rated Operational Voltage
- 125 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 7.9534
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 168.94
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 6.6948
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 190.13
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 168.94
- Customs Code
- 8537109170
Persona Type NamesConsumer, Contractor, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.04885472349669571, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.12502259085258138, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]8 kg CO2 eq., 7.9618
Local Publishable Date2026-06-23
Stocking FlagY
Use Carbon Footprint7.9618
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2011021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Aesthetic NameX Series
Device Applicationpower supply
Energy Efficiency OptimizedFalse
Materialplastic: strap
Mounting Modeby screws
Network TypeAC
Outlet Poles Configuration2P + E
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Set1 piece
ReturnabilityYes
Socket Additional Informationtamper resistant
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Signalling Colorgreen
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe product is to remotely control the load devices, which can be achieved with the free Sesmarter application on smartphone and reduce energy consumption and enjoy Wireless Home Automation, refer to WiFi standard 802.11 b/g/n. Its functional units meet the following technical indicators:& 10-The Rated voltage: 125VAC, 60Hz& 10-Wi-Fi® is a registered trademark of Wi-Fi Alliance R.& 10-Wireless Frequency:2.4GHz
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %38
Width Nominal44 mm
[Ie] Rated Operational Current Ac15 A
Connections - Terminalsphase and neutral 2 screw terminal 14 AWG...12 AWG) copper
Package Weight(Lbs)168.72 g
Warranty (In Months)24
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]7.9618
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]94.931
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.1758
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]21.187
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]21.187
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2011021EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2011021EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach RegulationFree of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint12.442226887077148
Environmental DisclosureENVPEP2011021EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep Verification Date2026-05-29
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- connected socket-outlet
ETIM
- ETIM 8
- EC000125
ETIM 9EC000125
Contractual Warranty Attributes
- Warranty Period
- 2 year
Warranty2 year
Overview Attributes
- Device Presentation
- mechanism with fixing frame
