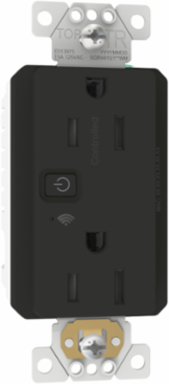

Schneider Electric SQR441U1BKWM Receptacle, X Series, 15A, decorator, WiFi, Matter, black
- MPN: SQR441U1BKWM
- PPN: SCH-SQR441U1BKWM
CAD
$62.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These tamper resistant Square D receptacles provide energy monitoring, with Wi-Fi connectivity, to bring intelligent IoT connectivity to your home. Using the Schneider Home mobile app, you can control your receptacles and what's plugged into them. The device is Matter Compliant and supports seamless communication among IoT devices across platforms, regardless of manufacturers. With the Schneider Home app, you can commission and control X Series Wi-Fi devices from anywhere without a hub. Schneider Home mobile app supports integration with popular voice assistants like Amazon's Alexa and Google Assistant for more comprehensive automation. Ideal for hub-free new construction and remodeling projects. Allows you to understand when and where you use electricity through the built-in energy monitoring features. Complete the look with one of the Square D X Series cover plates (not included) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. It is part of the Schneider Home integrated energy management system, which provides monitoring control and automation of your home's energy systems to save money, reduce carbon impact and enjoy energy resiliency.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 44 mm |
|---|
Communications & Management Attributes
| Communication Network Type | Wi-Fi (2.4-2.4 GHz), 10 mW at < 50 m, matter compliance |
|---|
Physical Attributes
| Color | Black |
|---|---|
| Signalling Color | green |
| Main Color Tint | black |
|---|
Important Information Attributes
| Persona Type Ids | EUA, LC, SC |
|---|---|
| X Main Color Tint | black |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.2369564928351765 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 4 kg CO2 eq., 4.069593079892694 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Body Type | decorator |
| Earth Circuit | self earthing |
| Market Segment | residential |
| Mobile App Name | Schneider Home |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Outlet Standard | NEMA |
| Product Or Component Type | connected socket-outlet |
| Range | Square D X Series |
| Signalling Function | status |
| Socket Number | 2 |
| Surface Finish | Matte |
| Targeted Channel | retail |
| Main Color Tint | black |
| Pep Code | ENVPEP2011021EN |
| Pep Verification Date | 2026-05-29 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| [Ue] Rated Operational Voltage | 125 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 7.9534 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 168.94 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 6.6948 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 190.13 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 168.94 |
| Customs Code | 8537109170 |
| Persona Type Names | Consumer, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.04885472349669571, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.12502259085258138, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 8 kg CO2 eq., 7.9618 |
| Local Publishable Date | 2026-06-23 |
| Stocking Flag | Y |
| Use Carbon Footprint | 7.9618 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2011021EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Aesthetic Name | X Series |
| Device Application | power supply |
| Energy Efficiency Optimized | False |
| Material | plastic: strap |
| Mounting Mode | by screws |
| Network Type | AC |
| Outlet Poles Configuration | 2P + E |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Socket Additional Information | tamper resistant |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 12 kg CO2 eq. |
| Signalling Color | green |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The product is to remotely control the load devices, which can be achieved with the free Sesmarter application on smartphone and reduce energy consumption and enjoy Wireless Home Automation, refer to WiFi standard 802.11 b/g/n. Its functional units meet the following technical indicators:& 10-The Rated voltage: 125VAC, 60Hz& 10-Wi-Fi® is a registered trademark of Wi-Fi Alliance R.& 10-Wireless Frequency:2.4GHz |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 38 |
| Width Nominal | 44 mm |
| [Ie] Rated Operational Current Ac | 15 A |
| Connections - Terminals | phase and neutral 2 screw terminal 14 AWG...12 AWG) copper |
| Package Weight(Lbs) | 168.72 g |
| Warranty (In Months) | 24 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 7.9618 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 94.931 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 1.1758 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 21.187 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 21.187 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2011021EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2011021EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 12.442226887077148 |
| Environmental Disclosure | ENVPEP2011021EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2026-05-29 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | connected socket-outlet |
|---|
ETIM
| ETIM 8 | EC000125 |
|---|
| ETIM 9 | EC000125 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 year |
|---|
| Warranty | 2 year |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
