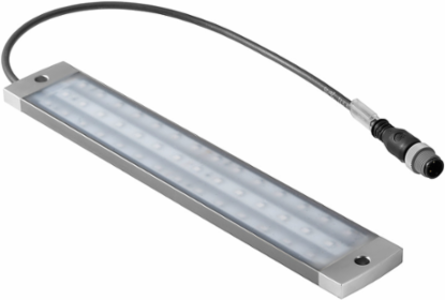

Weidmuller 2436350000 WIL-STANDARD-0.3-SCREW-SW-BLU

  • MPN: 2436350000
  • PPN: WDM-2436350000

CAD

$309.96

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

WIL-STANDARD-0.3-SCREW-SW-BLU

Documentation & Downloads

Specifications

Approvals

ApprovalsCE, CULUS
UL File Number SearchE354496
ROHSConform

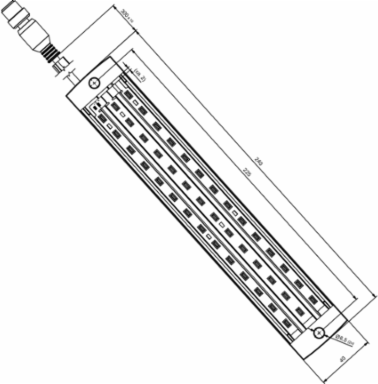

Dimensions And Weights

Width240 mm
Height8 mm
Depth40 mm
Net weight228 g
Width (inches)9.449 inch
Height (inches)0.315 inch
Depth (inches)1.575 inch

Standards

Certificate no. (cULus)E354496

Connection Data

Versionpin, straight
Connection threadM12
WiringPin 4 (Strand: black) control blue LED, Pin 3 (Strand: blue)
CodingA
Tightening torque0.8 Nm

General Technical Data

Number of LEDs42
Light current98 lm
Spectral colour445 - 460 nm
Operating life60.000 h
Drill hole spacing225 mm
Protection degreeIP67
Light colour (CCT)Blue
Emitting angle40 °
Illumination level34 lux
Type of mountingScrew mounting
Impact resistanceIK05

Cable Technical Specifications

Cable MaterialPUR
Cable length0.3 m
Sheathing colourblack

Electric Data

Rated voltage (text)24 V DC
Power8,5 W
Rated current0,36 A
DimmableYes

Material Data

Housing main materialhard anodised aluminium
Threaded ring materialPA
Encapsulation compoundPUR V0
Material of end capsDiecast zinc, nickel-plated

Classifications

ETIM 6.0EC001959
eClass 9.027-11-06-40
eClass 10.027-11-06-40
ETIM 7.0EC001959
eClass 9.127-11-06-40

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.60 °C
Operating temperature-20 - 60°C
Operating temperature, min.-20 °C
WIL-STANDARD-0.3-SCREW-SW-BLU
WIL-STANDARD-0.3-SCREW-SW-BLU
WIL-STANDARD-0.3-SCREW-SW-BLU
