Weidmuller

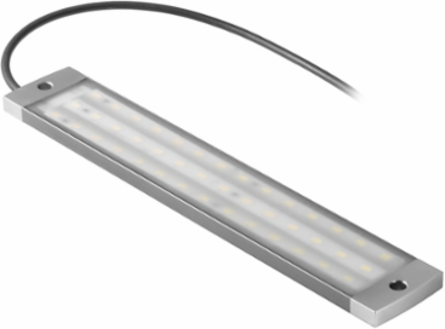

Weidmuller 2527910000 WIL-STANDARD-10-SCREW-SW-WHI

  • MPN: 2527910000
  • PPN: WDM-2527910000

CAD

$269.27

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

WIL-STANDARD-10-SCREW-SW-WHI

Documentation & Downloads

Specifications

Approvals

ApprovalsCE, CULUS
UL File Number SearchE354496
ROHSConform

Dimensions And Weights

Width240 mm
Height8 mm
Depth40 mm
Net weight240 g
Width (inches)9.449 inch
Height (inches)0.315 inch
Depth (inches)1.575 inch

Standards

Certificate no. (cULus)E354496

Connection Data

VersionCable end open
WiringBrown +, Blue -
Connection threadwithout

General Technical Data

Number of LEDs42
Luminosity3,470 cd
Emitting angle40 °
Operating life60.000 h
Drill hole spacing225 mm
Protection degreeIP67
Light colour (CCT)6500K, White
Light current711 lm
Illumination level245 lux
Type of mountingScrew mounting
Impact resistanceIK05

Cable Technical Specifications

Cable MaterialPUR
Cable length10 m
Sheathing colourblack

Electric Data

Rated voltage (text)24 V DC
Power8,5 W
Rated current0,42 A
DimmableYes

Material Data

Housing main materialhard anodised aluminium
Material of end capsDiecast zinc, nickel-plated
Encapsulation compoundPUR V0

Classifications

ETIM 6.0EC001959
eClass 9.027-11-06-40
eClass 10.027-11-06-40
ETIM 7.0EC001959
eClass 9.127-11-06-40

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.60 °C
Operating temperature-20 - 60°C
Operating temperature, min.-20 °C
WIL-STANDARD-10-SCREW-SW-WHI
WIL-STANDARD-10-SCREW-SW-WHI
WIL-STANDARD-10-SCREW-SW-WHI
