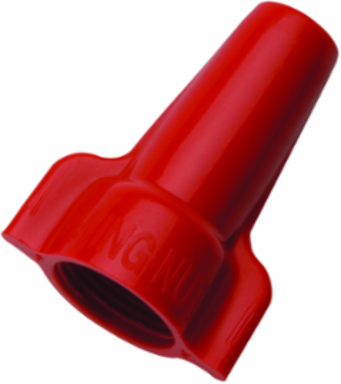

Wing-Nut Wire Connector Model 452 Red, 2 #18 to 4 #10, Box of 100
Wing-Nut Wire Connector Model 452 Red, 2 #18 to 4 #10, Box of 100
Ideal Industries

Ideal Industries 30-452 Wing-Nut Wire Connector Model 452 Red, 2 #18 to 4 #10, Box of 100

  • MPN: 30-452
  • UPC: 624141304522
  • PPN: IDL-30-452

CAD

$48.38

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

More power with every twist.The Wing-Nut® Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut® also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.The Red Model 452® offers the widest range winged connector in the industry from 2 #18 to 4 #10.

Features

  • Largest range in the Industry - from 2 #18 to up 4 #10
  • High-leverage, contoured wing provides superior torque on every twist
  • Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
  • Copolymer shell expands for smooth, progressive tightening providing dependable connections
  • Removable for repeat usage on same size or larger combinations

Documentation & Downloads

Specifications

Additional

Voltage
600V Max
Temperature Rating
105° C (221° F)
Compliance
UL 486C, UL 94V-2 Flame Rating, CSA C22.2 No. 188, RoHS, IEC 998-2-4
Model
452
Wire Range2 #18 to 4 #10
MaterialThermoplastic Polyester housing, Steel insert, Zinc plating
ColorRed
