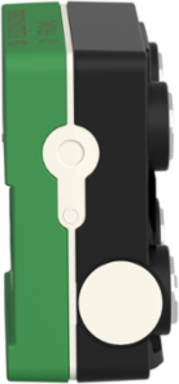

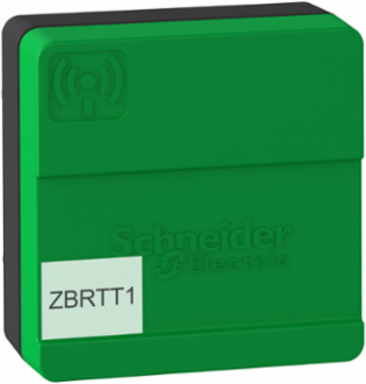

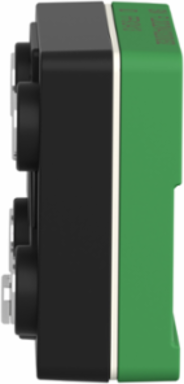

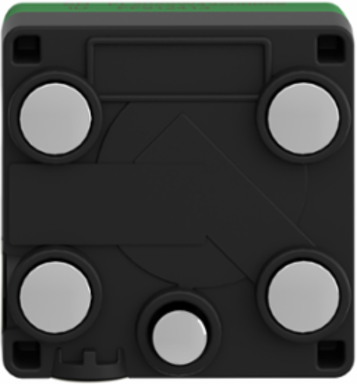

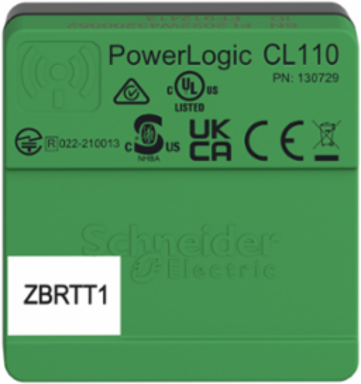

Schneider Electric ZBRTT1 Harmony XB5R Wireless Temperature Transmitter, 2400MHz, IP54, 0.034 kg
- MPN: ZBRTT1
- PPN: SCH-ZBRTT1
CAD
$384.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Harmony XB5R Wireless Temperature Transmitter, 2400MHz, IP54, 0.034 kg
Documentation & Downloads
Specifications
Key Specifications
- Antenna Type
- omnidirectional
- Transmission Frequency
- 2400 MHz
- Device Short Name
- XB5R
Range Of ProductHarmony XB5R
Product Or Component Typewireless transmitter
Complementary
- Mechanical Robustness
- free fall resistance 1000 mm IEC 60068-2-32
- Measurement Temperature
- 90 °C
- Standards
- IEC 61010-1 || UL 61010-1 || IEEE 802.15.4
- Max Power Consumption In W
- 60 mW
- Fixing Mode
- magnetic fixing
- Electrical Composition Code
- PW1
- Radio Agreement
- ANATEL || ARIB T66 || FCC || ICASA || RSS || SRRC
- Antenna Gain
- 0 dBi
- Cad Overall Depth
- 40 mm
- Cad Overall Height
- 21 mm
Mounting Modemagnetic
Modulation TechniqueO-QPSK
Maximum Sensing Distance100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 10 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Number Of Channels16
Acquisition Time2 ms
Communication Port ProtocolZigbee green power 2.4 GHz IEEE 802.15.4
Response Time< 2 ms
Cad Overall Width40 mm
Net Weight0.034 kg
Bandwidth5-5 MHz
Environment
- Product Certifications
- CSA || CCC || UL || GOST || C-Tick || BT 2006/95/EC
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electromagnetic Compatibility
- susceptibility to electromagnetic fields - test level: 25 V/m (80 MHz...6 GHz) conforming to IEC 61000-4-3 || susceptibility to conducted disturbances - test level: 20 V (0.15...80 MHz) conforming to IEC 61000-4-6 || electromagnetic field immunity test - test level: 1000 A/m (pulsed) conforming to IEC 61000-4-8 || electromagnetic field immunity test - test level: 300 A/m (continuous) conforming to IEC 61000-4-8 || electromagnetic field immunity test - test level: 1000 A/m (pulsed) conforming to EN/IEC 61000-4-9 || damped oscillatory wave - test level: 3 kV conforming to IEC 61000-4-10 || damped oscillatory wave - test level: 2.5 kV conforming to EN/IEC 61000-4-18 || surge immunity test conforming to EN/IEC 61000-4-18 || surge immunity test (common mode) conforming to IEC 61000-4-5 || immunity to conducted RF disturbances - test level: 30 V (differential mode) conforming to IEC 61000-4-5 || immunity to conducted RF disturbances (continuous) conforming to IEC 61000-4-16 || immunity to conducted RF disturbances - test level: 300 V || immunity to conducted RF disturbances (short term) conforming to IEC 61000-4-16
- Vibration Resistance
- 2 gn 5-200 Hz)IEC 60068-2-6 || 4 gn 200-500 Hz)IEC 60068-2-6 || 1 gn 10-2000 Hz)IEC 60068-2-64 || 1 gn 5-500 Hz)IEC 60068-2-6
Ik Degree Of ProtectionIK06 conforming to IEC 62262
Directives2004/108/EC - electromagnetic compatibility || 1999/5/EC - R&TTE directive
Relative Humidity10-95 % -40-70 °C
Shock Resistance40 gn 6 ms) 3 shocks IEC 60068-2-27 || 20 gn 16 ms) 1000 shocks IEC 60068-2-27 || 10 gn 11 ms) 3 shocks IEC 60068-2-27
Ip Degree Of ProtectionIP54 IEC 60529
Offer Sustainability
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
