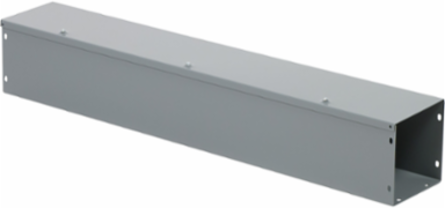

Square D LDB63 Square-Duct Wireway 6 Inch x 6 Inch 3 Feet Long Hinged Cover NEMA 1
- MPN: LDB63
- UPC: 785901199922
- PPN: SCH-LDB63
CAD
$124.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 6 inch by 6 inch and 3 feet long. This wireway is constructed of 16 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Mexico, United States
Physical Attributes
- Trunking Length
- 3 ft
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- N
- Weee Scope
- Out
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1652
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cover Type
- hinged cover
- Energy Efficiency Optimized
- False
- Product Or Component Type
- straight length
- Returnability
- Yes
- Sustainable Packaging
- No
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Enclosure Materialsteel 16 gauge without knock-outs
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSQUARE-Duct
Surface FinishGray polyester powder ANSI 49
Trunking Dimension6 x 6 in
Package Weight(Lbs)6.804 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- straight length
Range Of ProductSQUARE-Duct
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
