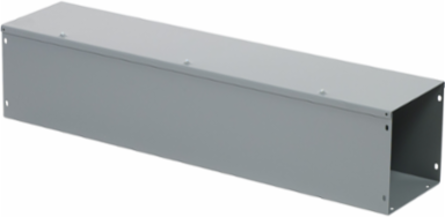

Square D LDB83 Square-Duct Wireway 8 Inch x 8 Inch, 3 Feet Long, NEMA 1, Hinged Cover
Square D LDB83 Square-Duct Wireway 8 Inch x 8 Inch, 3 Feet Long, NEMA 1, Hinged Cover
- MPN: LDB83
- UPC: 785901200307
- PPN: SCH-LDB83
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$247.05/ EA
Description
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 8 inch by 8 inch and 3 feet long. This wireway is constructed of 16 gauge galvanized steel and is rated NEMA Type 1 Square-Duct wireway is UL listed and CSA certified.
Specifications
Specifications
- Product Certifications
- UL listed || CSA
- Range Of Product
- SQUARE-Duct
- Nema Degree Of Protection
- NEMA 1
- Trunking Length
- 3 ft
- Trunking Dimension
- 8 x 8 in
Cover Typehinged cover
Enclosure Materialsteel 14 gauge without knock-outs
Surface Finishgrey polyester powder ANSI 49
Product Or Component Typestraight length
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
