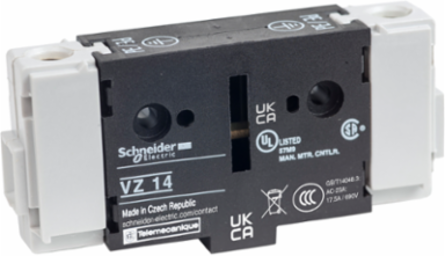

TeSys Additional Earthing Block 40A, IP20, 690V
Schneider Electric

Schneider Electric VZ14 TeSys Additional Earthing Block 40A, IP20, 690V

  • MPN: VZ14
  • PPN: SCH-VZ14

CAD

$32.80

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

VZ14 is an add-on earthing module for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A to 40A 690V, to be used with V02 to V2 switch bodies. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France
Depth35 mm

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Mechanical Robustness
vibrations 10...150 Hz 5 gn) IEC 60068-2-6, shocks 11 ms 15 gn) IEC 60068-2-27
Network Type
AC, DC
Carbon Footprint Of The Distribution Phase [A4]
0.007846013513513512, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.02661486486486486, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
0.5 kg CO2 eq., 0.4993700000000001
Local Publishable Date
2025-12-03
Stocking Flag
N
Device Type
LV equipment - LV fuse - switch
Traceability
No
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
1936
China Rohs In Scope
No
Without Single Use Plastic
Yes
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Contacts Type And Composition
without
Fire Resistance
960 °C IEC 60695-2-1
Performance Level
high performance
Product Or Component Type
additional earthing block
Range
TeSys
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
1 kg CO2 eq.
Pep Code
ENVPEP2211001EN
Pep Verification Date
2025-06-18
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; FR
Height Nominal
74 mm
[Ith] Conventional Free Air Thermal Current
40 A
[Uimp] Rated Impulse Withstand Voltage
6 kV
Halogen-free Status
Halogen free product
Package Weight(Lbs)
44.0 g
Warranty (In Months)
18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Locationleft, right
Certificate AgencyUL, GL, CSA, UKCA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.13483783783783782
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.341402027027027
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codeearthing module
Device Short NameVZ
Network Frequency50/60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 12A ensuring isolation characterized by rated voltage 8KV. This function is provided for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %35
Width Nominal16 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Connections - Terminalsscrew clamp terminals
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Product Compatibility
V0, V02, V2, V01, V1
Halogene Performance
Halogen free product
Mercury Free
Yes
Environmental Disclosure
ENVPEP2211001EN
Halogen Content Performance
Halogen free product
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2025-06-18
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1.0100707432432432
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
additional earthing block

ETIM

ETIM 8
EC002498
ETIM 9EC002498

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
