Woodhead

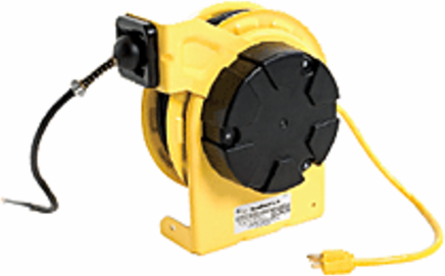

Woodhead 997-3070G Woodhead Standard Cord Reel, 12/3 SJTOW Cord, 10.67m (35.0') Cord Length with 15A GFCI Pendant Outlet Box, One Duplex, NEMA 5-15 Outlet

Woodhead Standard Cord Reel, 12/3 SJTOW Cord, 10.67m (35.0') Cord Length with 15A GFCI Pendant Outlet Box, One Duplex, NEMA 5-15 Outlet
  • MPN: 997-3070G
  • PPN: WOD-997-3070G

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1288.64/ EA

Description

Woodhead® Standard Cord Reel, 12/3 SJTOW Cord, 10.67m (35.0') Cord Length with 15A GFCI Pendant Outlet Box, One Duplex, NEMA 5-15 Outlet

Specifications

General

Type
Cord Reel
Depth
0.30m (11.75")
Duty
Standard
Cable Length
0.457m (1.50')
Overview
Electric Reels
Height
0.36m (14.25")
UPC
78678833628
Width196.85mm (7.750")
Series130091
Product FamilyElectric Reels
NEMA ConfigurationNEMA 5-15
Product NameSuper-Safeway™
Enclosure RatingNEMA 1
Product Literature Order No987650-8061

Physical

Number of Receptacles
2
Primary Cord/Cable Entry
N/A
Wire Size AWG
12
Cord Length
10.67m (35.0')
Guide Arm
2 - Position
Packaging Type
Carton
Mounting Style
Rigid
Number of Conductors3
Retraction Weight1.4kg (3.0 lb)
Drum LockRatchet
Material - HousingSteel/Polycarbonate
Cable MovementRatchet Lock
Material - CoatingPowder Coating

Electrical

Lamp Wattage - Maximum
N/A
Voltage - Maximum
120V
Bulb Included
N/A
Lamp Type
N/A
On/Off SwitchNo
Cord Type12/3 SJTOW
Current - Maximum per Contact15.0A
GFCIYes

Material Info

Engineering Number
997-3070G
