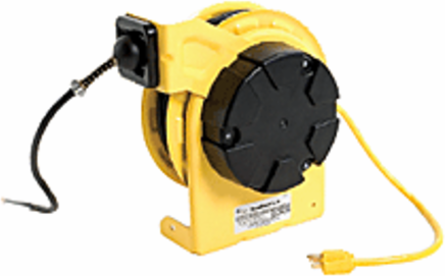

Woodhead 980-3070G Standard Cord Reel, 15.24m (50 Inch) Cord, 15A GFCI Outlet, NEMA 5-15
- MPN: 980-3070G
- PPN: WOD-980-3070G
CAD
$1229.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Standard Cord Reel, 15.24m (50 Inch) Cord, 15A GFCI Outlet, NEMA 5-15
Documentation & Downloads
Specifications
General
| Product Name | Super-Safeway™ |
|---|---|
| Enclosure Rating | NEMA 1 |
| Cable Length | 0.457m (1.50') |
| Type | Cord Reel |
| Duty | Standard |
| Height | 0.36m (14.25") |
| UPC | 78678833616 |
| Product Family | Electric Reels |
|---|---|
| NEMA Configuration | NEMA 5-15 |
| Depth | 0.30m (11.75") |
| Width | 196.85mm (7.750") |
| Overview | Electric Reels |
| Series | 130091 |
| Product Literature Order No | 987650-8061 |
Physical
| Retraction Weight | 1.4kg (3.0 lb) |
|---|---|
| Material - Coating | Powder Coating |
| Wire Size AWG | 16 |
| Material - Housing | Steel/Polycarbonate |
| Drum Lock | Ratchet |
| Guide Arm | 2 - Position |
| Packaging Type | Carton |
| Cord Length | 15.24m (50.0') |
|---|---|
| Cable Movement | Ratchet Lock |
| Primary Cord/Cable Entry | N/A |
| Number of Conductors | 3 |
| Mounting Style | Rigid |
| Number of Receptacles | 2 |
Electrical
| On/Off Switch | No |
|---|---|
| Current - Maximum per Contact | 8.0A |
| Lamp Wattage - Maximum | N/A |
| Voltage - Maximum | 120V |
| Lamp Type | N/A |
|---|---|
| Cord Type | 16/3 SJTOW |
| GFCI | Yes |
| Bulb Included | N/A |
Material Info
| Engineering Number | 980-3070G |
|---|
