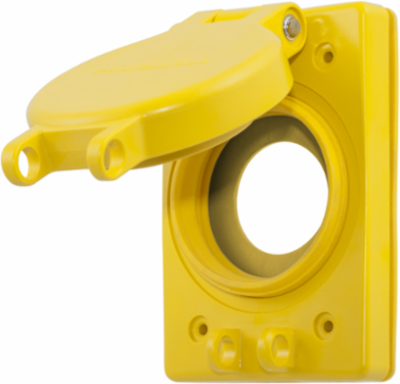

Hubbell Wiring Device-Kellems HBL6700 Watertight Lift Cover Assembly for Locking 20A Receptacles, 4.56 x 3.10 x 1.20 Inch, Yellow
- MPN: HBL6700
- UPC: 783585456508
- PPN: HBL-HBL6700
- UNSPSC: 39121304
CAD
$115.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Watertight Devices, Accessories, Weather Protective Lift Cover, Yellow, For use with locking 20A receptacles
Features
- Impact resistant PBT cover plate
- Stainless steel hinge spring and pin
- Thermoplastic elastomer seal
Documentation & Downloads
Specifications
Additional
- Amperage
- 20A
- Length
- 4.56 in
- Height
- 1.20 in
- Cover Plate Material
- PBT
- Mounting Plate Material
- Stainless Steel
- Mounting Screws Material
- Stainless Steel
- Moisture Resistance
- UL Listed 3R, 3RX, 4X, 12
- UV Resistance
- UV stabilized
- Country of Origin
- PR
Dimensions4.56 in x 3.10 in x 1.20 in
Width3.10 in
ColorYellow
Seal MaterialThermoplastic Elastomer (TPE)
Hinge Spring and Pin MaterialStainless Steel
Flammability RatingUL94 V-0
Operating Temperature Range-40 C to +60 C continuous
StandardsUL514D, UL50E, CSA C22.2 No. 42, NEMA WD-1, WD-6, ANSI
