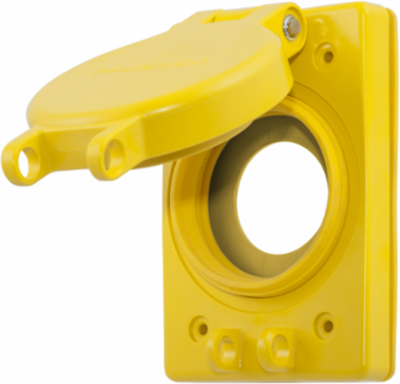

Hubbell Wiring Device-Kellems HBL6800 Watertight Lift Cover Assembly, 4.56 x 3.10 x 1.20 Inch, Yellow
- MPN: HBL6800
- UPC: 783585456515
- PPN: HBL-HBL6800
- UNSPSC: 39121304
CAD
$115.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Watertight Devices, Accessories, Weather Protective Lift Cover, Yellow, For use with locking 30A receptacles
Features
- Impact resistant PBT cover plate
- Stainless steel hinge spring and pin
- Thermoplastic elastomer seal
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Height | 1.20 in |
| Length | 4.56 in |
| Standards - RoHS Compliance Status | CM |
| Size | 4.56 in x 3.10 in x 1.20 in |
| Type | Lift Covers |
| Width | 3.10 in |
| General Literature Asset 1 Display Text | Watertight Wiring Devices |
| General Literature Asset 3 Display Text | PULP & PAPER SOLUTIONS |
| Description - Invoice | WP LIFT COVER ASSY, LCK 30A, LESS RECEP |
| Harmonization Code | 3926909989 |
| MSDS Flag | No |
| Sub Class Code | A08A116 |
| BOX SIZE | 7.800x10.400x9.000 (in) |
| Carton - Number of Sub Packs | 20 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585456515 |
| Case Weight | 7.700 lb. |
| Dimensions | 4.56 in x 3.10 in x 1.20 in |
|---|---|
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Performance | Environmental - Flammability - UL94 V-0;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 3R, 3RX, 4X, 12;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous |
| Color | Yellow |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Weight | 0.35 lb. |
| Engineering Drawing 1 Display Text | HBL6800 AutoCAD Drawing |
| General Literature Asset 2 Display Text | Pulp & Paper Solutions |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 6800H |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 7.800 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 20 EA |
| NAICS Code | 3359326105 |
