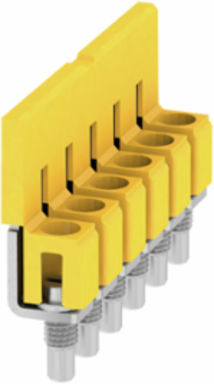

Weidmuller 1057160000 WQV 4/6
- MPN: 1057160000
- PPN: WDM-1057160000
CAD
$6.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Cross-connector, For the terminals, Number of poles: 6
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 7.6 mm |
|---|---|
| Height | 35 mm |
| Depth | 18 mm |
| Net weight | 7.2 g |
| Width (inches) | 0.299 inch |
|---|---|
| Height (inches) | 1.378 inch |
| Depth (inches) | 0.709 inch |
Dimensions
| Pitch in mm (P) | 6.1 mm |
|---|
Additional Technical Data
| Installation advice | Direct mounting |
|---|
| Type of fixing | when screwed in |
|---|
Material Data
| Material | PA 66 |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | yellow |
|---|
Classifications
| ETIM 6.0 | EC000489 |
|---|---|
| eClass 9.0 | 27-14-11-40 |
| eClass 10.0 | 27-14-11-40 |
| ETIM 7.0 | EC000489 |
|---|---|
| eClass 9.1 | 27-14-11-40 |
| UNSPSC | 30-21-18-01 |
System Specifications
| Version | For the terminals |
|---|
Cross-Connector
| Number of cross-connected terminals | 6 |
|---|---|
| Rated current, multi-pole | 41 A |
| Type | Cross-connector |
| Rated current, 2-pole | 41 A |
|---|---|
| Tightening torque range for fixing screw | 0.5...1.0 Nm |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated current | 41 A |
|---|
