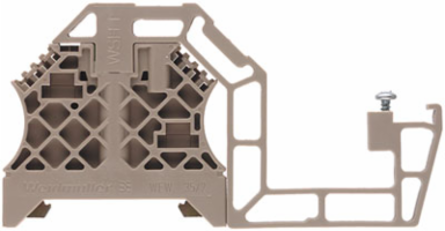

Weidmuller 1068700000 WSH 1
- MPN: 1068700000
- PPN: WDM-1068700000
CAD
$10.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, Rail support, PA 66 GF 30
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 8 mm |
|---|---|
| Height | 110 mm |
| Depth | 57 mm |
| Net weight | 26.175 g |
| Width (inches) | 0.315 inch |
|---|---|
| Height (inches) | 4.331 inch |
| Depth (inches) | 2.244 inch |
Dimensions
| Pitch in mm (P) | 8 mm |
|---|
| Mounting offset | 66 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of fixing | when screwed in |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | PA 66 GF 30 |
|---|---|
| UL 94 flammability rating | HB |
| Colour | dark beige |
|---|
Classifications
| ETIM 6.0 | EC001166 |
|---|---|
| eClass 9.0 | 27-40-06-07 |
| eClass 10.0 | 27-40-06-07 |
| ETIM 7.0 | EC001166 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-01 |
System Specifications
| Version | For the mounting rails |
|---|
| Rail | TS 35 |
|---|
Temperatures
| Operating temperature, max. | 65 °C |
|---|---|
| Storage temperature, max. | 40 °C |
| Operating temperature | -50 °C.../TX]65 °C |
| Continuous operating temp., min. | -50 °C |
| Operating temperature, min. | -50 °C |
|---|---|
| Storage temperature, min. | 10 °C |
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 100 °C |
