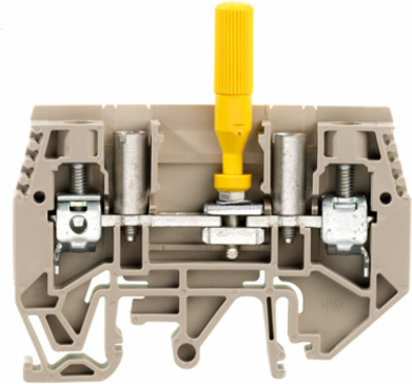

Weidmuller 1938820000 WTL 6/1/STB/TNSC/EN
- MPN: 1938820000
- PPN: WDM-1938820000
CAD
$10.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Test-disconnect terminal, Screw connection, 6 mm², 630 V, 41 A, sliding, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 7.9 mm
- Height
- 65 mm
- Depth
- 66 mm
- Depth including DIN rail
- 66.5 mm
Width (inches)0.311 inch
Height (inches)2.559 inch
Depth (inches)2.598 inch
Net weight26.34 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Current size C (CSA)
- 45 A
- Voltage size C (CSA)
- 300 V
- Wire cross section min. (CSA)
- 20 AWG
Current size B (CSA)45 A
Voltage size B (CSA)300 V
Wire cross section max. (CSA)8 AWG
Additional Technical Data
- Explosion-tested version
- No
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Specifications
- Version
- Screw connection, Spacer, With sockets, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- sliding
- Torque min. screw separator
- 0.5 Nm
Integral test socketYes
Torque max. screw separator0.6 Nm
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 6 mm²
- Rated current
- 41 A
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
- Rated impulse withstand voltage
- 6 kV
Rated voltage630 V
Current at maximum wires57 A
Power loss in accordance with IEC 60947-7-x1.31 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.8 x 4.0 mm
- Clamping range, min.
- 0.5 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Gauge to IEC 60947-1
- A5
- Stripping length
- 12 mm
- Tightening torque, min.
- 1 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, min.
- AWG 20
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.10 mm²
Clamping screwM 3.5
Connection directionon side
Number of connections2
Tightening torque, max.1.6 Nm
Torque level with DMS electric screwdriver3
Wire connection cross section AWG, max.AWG 8
Wire connection cross section, finely stranded, max.10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.10 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 20 AWG
- Conductor size Field wiring min. (UR)
- 20 AWG
- Current size C (UR)
- 45 A
- Voltage size C (UR)
- 300 V
Conductor size Factory wiring max. (UR)8 AWG
Conductor size Field wiring max. (UR)8 AWG
Current size B (UR)45 A
Voltage size B (UR)300 V
