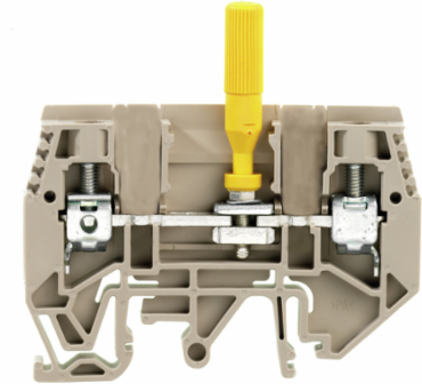

Weidmuller 1345280000 WTL 6/1/TNSC/EN
- MPN: 1345280000
- PPN: WDM-1345280000
CAD
$10.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Test-disconnect terminal, Screw connection, 6 mm², 630 V, 41 A, sliding, dark beige
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 7.9 mm |
|---|---|
| Height | 65 mm |
| Depth | 66 mm |
| Depth including DIN rail | 66.5 mm |
| Width (inches) | 0.311 inch |
|---|---|
| Height (inches) | 2.559 inch |
| Depth (inches) | 2.598 inch |
| Net weight | 23.34 g |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of mounting | Snap-on |
| Open sides | right |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000902 |
|---|---|
| eClass 9.0 | 27-14-11-26 |
| eClass 10.0 | 27-14-11-26 |
| ETIM 7.0 | EC000902 |
|---|---|
| eClass 9.1 | 27-14-11-26 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | Screw connection, Spacer, for screwable cross-connection, One end without connector |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Disconnect Terminals
| Cross-disconnect | without |
|---|---|
| Slitting | sliding |
| Torque min. screw separator | 0.5 Nm |
| Integral test socket | No |
|---|---|
| Torque max. screw separator | 0.6 Nm |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 6 mm² |
|---|---|
| Rated current | 41 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 630 V |
|---|---|
| Current at maximum wires | 57 A |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Blade size | 0.8 x 4.0 mm |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | A5 |
| Stripping length | 12 mm |
| Tightening torque, min. | 1 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Clamping range, max. | 10 mm² |
|---|---|
| Clamping screw | M 3.5 |
| Connection direction | on side |
| Number of connections | 2 |
| Tightening torque, max. | 1.6 Nm |
| Torque level with DMS electric screwdriver | 3 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
