Weidmuller 1062130000 WTL 6/3/STB GE

MPN: 1062130000
PPN: WDM-1062130000

$18.53

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

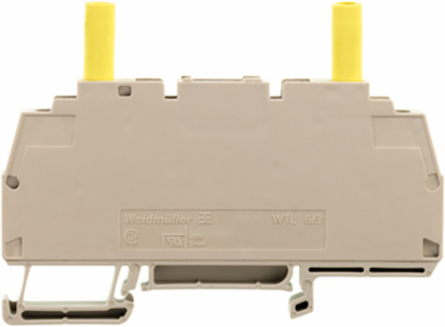

Test-disconnect terminal, Screw connection, 6 mm², 500 V, 41 A, sliding, dark beige

Documentation & Downloads

Specifications

Approvals

Approvals	CSA, EAC, KEMAKEUR, UR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	7.9 mm
Height	87 mm
Depth	64 mm
Depth including DIN rail	65 mm
Net weight	34.22 g

Width (inches)	0.311 inch
Height (inches)	3.425 inch
Depth (inches)	2.52 inch
Weight	40.1 g

Csa Rating Data

Certificate No. (CSA)	200039-1057876
Voltage size C (CSA)	300 V
Wire cross section min. (CSA)	20 AWG

Current size C (CSA)	45 A
Wire cross section max. (CSA)	8 AWG

Additional Technical Data

Explosion-tested version	No
Open sides	closed

Number of similar terminals	1
Type of mounting	Snap-on

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	dark beige

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000902
eClass 9.0	27-14-11-26
eClass 10.0	27-14-11-26

ETIM 7.0	EC000902
eClass 9.1	27-14-11-26

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

System Specifications

Version	Screw connection, Spacer, for plug-in cross-connector, in closed state
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 35
PE function	No

End cover plate required	No
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Disconnect Terminals

Cross-disconnect	without
Slitting	sliding
Torque min. screw separator	0.5 Nm

Integral test socket	Yes
Torque max. screw separator	0.7 Nm

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	130 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Rating Data

Rated cross-section	6 mm²
Rated current	41 A
Volume resistance according to IEC 60947-7-x	0.78 mΩ
Rated impulse withstand voltage	6 kV
Surge voltage category	III

Rated voltage	500 V
Current at maximum wires	57 A
Power loss in accordance with IEC 60947-7-x	1.31 W
Pollution severity	3

Conductors For Clamping (Rated Connection)

Blade size	0.8 x 4.0 mm
Clamping range, min.	0.5 mm²
Connection cross-section, stranded, max.	10 mm²
Connection direction	on side
Number of connections	2
Tightening torque, max.	1.6 Nm
Torque level with DMS electric screwdriver	3
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section, finely stranded, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	10 mm²

Clamping range, max.	10 mm²
Clamping screw	M 3.5
Connection cross-section, stranded, min.	10 mm²
Gauge to IEC 60947-1	A5
Stripping length	12 mm
Tightening torque, min.	0.8 Nm
Type of connection	Screw connection
Wire connection cross section AWG, min.	AWG 20
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	6 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²
