Weidmuller 1781230000 WTW WF6 2300
Weidmuller 1781230000 WTW WF6 2300
- MPN: 1781230000
- PPN: WDM-1781230000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$8.72/ EA
Description

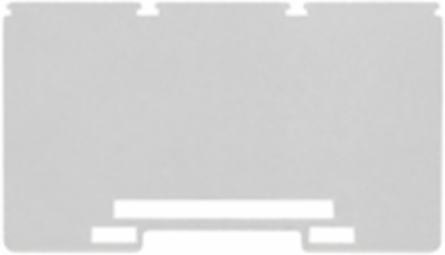

Bolt-type screw terminals, Seperation plate, grey, 2 mm
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 2 mm
- Height
- 101.8 mm
- Depth
- 58.45 mm
- Mounting dimension - width
- 2 mm
Width (inches)0.079 inch
Height (inches)4.008 inch
Depth (inches)2.301 inch
Net weight18.4 g
Additional Technical Data
- Installation advice
- Direct mounting
Snap-onNo
Material Data
- Material
- Epoxy resin
- UL 94 flammability rating
- V-0
Colourgrey
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
UNSPSC30-21-18-27
System Specifications
- Version
- End and intermediate plate
Temperatures
- Operating temperature range, max.
- 160 °C
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -60 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.160 °C
