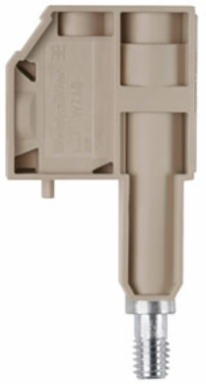

Weidmuller 1872720000 WZAD 50N
- MPN: 1872720000
- PPN: WDM-1872720000
CAD
$7.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Additional connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- CSA, cURus
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 12.5 mm
- Height
- 30.5 mm
- Depth
- 60.5 mm
- Net weight
- 26.12 g
Width (inches)0.492 inch
Height (inches)1.201 inch
Depth (inches)2.382 inch
Dimensions
- Pitch in mm (P)
- 14 mm
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Current size C (CSA)
- 50 A
- Voltage size C (CSA)
- 600 V
- Wire cross section min. (CSA)
- 24 AWG
Current size B (CSA)50 A
Voltage size B (CSA)600 V
Wire cross section max. (CSA)8 AWG
Additional Technical Data
- Explosion-tested version
- No
- Type of fixing
- Snap-on
Installation adviceFeed-through (bushing), Direct mounting
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC002848
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC002848
eClass 9.127-14-11-92
UNSPSC30-21-18-11
System Specifications
- Version
- Additional connection
- Number of levels
- 1
End cover plate requiredNo
Number of clamping points per level1
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 6 mm²
- Rated current
- 41 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Pollution severity
- 3
Rated voltage800 V
Current at maximum wires41 A
Volume resistance according to IEC 60947-7-x0.78 mΩ
Rated impulse withstand voltage8 kV
Conductors For Clamping (Rated Connection)
- Clamping range, max.
- 10 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection direction
- on side
- Number of connections
- 1
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.3 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.3 mm²
- Wire connection cross-section, solid core, max.
- 10 mm²
Clamping range, min.0.3 mm²
Connection cross-section, stranded, min.0.3 mm²
Gauge to IEC 60947-1A5
Type of connectionScrew connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.6 mm²
Wire connection cross-section, finely stranded, min.0.3 mm²
Wire connection cross-section, solid core, min.0.3 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 24 AWG
- Conductor size Field wiring min. (cURus)
- 24 AWG
- Current size C (cURus)
- 50 A
- Voltage size C (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)8 AWG
Conductor size Field wiring max. (cURus)8 AWG
Current size B (cURus)50 A
Voltage size B (cURus)600 V
