Weidmuller 1924490000 ZDK 2.5/3AN V
- MPN: 1924490000
- PPN: WDM-1924490000
CAD
$7.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

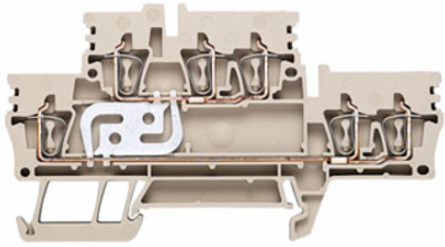

Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, cURus, DEMKOATEX, EAC, GERMLLOYD, IECEXULD, INMETRO
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 93 mm
- Depth
- 50.5 mm
- Depth including DIN rail
- 51.5 mm
Width (inches)0.201 inch
Height (inches)3.661 inch
Depth (inches)1.988 inch
Net weight16.6 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1842498
- Current size C (CSA)
- 24 A
- Voltage size C (CSA)
- 300 V
- Wire cross section min. (CSA)
- 30 AWG
Current size B (CSA)24 A
Voltage size B (CSA)300 V
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Explosion-tested version
- Yes
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-11
System Specifications
- Version
- Tension-clamp connection, for plug-in cross-connector, Vertically cross-connected, One end without connector
- Number of levels
- 2
- Levels cross-connected internally
- Yes
- Rail
- TS 35
End cover plate requiredYes
Number of clamping points per level3
PE connectionNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -50 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.120 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage800 V
Current at maximum wires24 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage8 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO16ATEX1729U
- Max. voltage (ATEX)
- 440 V
- Wire cross section max. (ATEX)
- 2.5 mm²
- Current (IECEX)
- 20 A
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXULD16.0025U
Current (ATEX)20 A
Max. voltage (IECEX)440 V
Wire cross section max. (IECEX)2.5 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.05 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Number of connections
- 6
- Type of connection
- Tension-clamp connection
- Wire connection cross section AWG, min.
- AWG 24
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.4 mm²
Connection cross-section, stranded, max.2.5 mm²
Gauge to IEC 60947-1A2
Stripping length10 mm
Wire connection cross section AWG, max.AWG 12
Wire connection cross section, finely stranded, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.4 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 30 AWG
- Conductor size Field wiring min. (cURus)
- 30 AWG
- Current size C (cURus)
- 20 A
- Voltage size C (cURus)
- 300 V
Conductor size Factory wiring max. (cURus)12 AWG
Conductor size Field wiring max. (cURus)12 AWG
Current size B (cURus)20 A
Voltage size B (cURus)300 V
