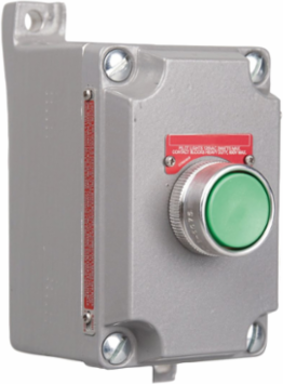

Killark XCS-2B3 Aluminum Push Button Control Station - 3/4 Inch Hub, Momentary Action, 10A Amperage Rating
Killark XCS-2B3 Aluminum Push Button Control Station - 3/4 Inch Hub, Momentary Action, 10A Amperage Rating
- MPN: XCS-2B3
- UPC: 783936890876
- PPN: HBL-XCS-2B3
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$659.29/ EA
Description
XCS Series - Aluminum Dead-End Momentary Contact Single Push Button Control Station - Black Button With Nameplate To Be Specified - Hub Size 3/4Inch - 1NO/1NC Contact Rating
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Number of Poles
- 1
- ARRA Compliant
- Contact Manufacturer
- Color
- Black
- Depth
- 4-1/32
- Each - Width
- 3.000 in
- Action
- Momentary
- Amperage Rating
- 10 A
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- UL File Number
- E53360
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Special FeaturesKillark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Back Box TypeSWB
Country of OriginUS
Width3.000 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ActuatorSingle Pushbutton
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Frequency Rating50/60 Hz
TypeAluminum Box And Cover With Push Button
Description - InvoiceCLI XCS-0B3 CV W/3/4"DEADEND (
Harmonization Code8536509901
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging2.6
SeriesXCS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936890876
Certifications
- EU RoHS Indicator
- Contact Manufacturer
